1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial

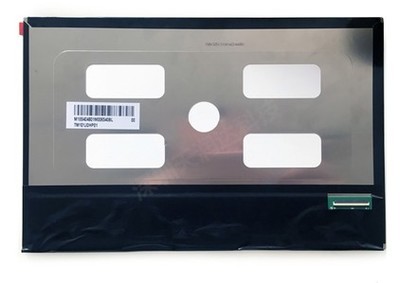

2. TIANMA TM101JDHP01 Mechanical Features
| Panel Size : | 10.1 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0565×0.1695 mm | 0.1695×0.1695 mm [149PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 216.96×135.6 mm | - | 229.46×149.1 mm | 2.55/4.6 (Typ./Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | - |
| Fixation : | Without |
| Other Features : | Panel Cover | Weight | Surface |
| - | 180g (Typ.) | Hard coating |
3. TIANMA TM101JDHP01 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 400 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 10/15 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7289K | 16.7M (8-bit) | X:0.300; Y:0.324 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM101JDHP01 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | Array | 3S11P | 30K(Typ.) | - |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
| 220/330mA (Typ./Max.) | 9.0/9.6/10.8V (Min./Typ./Max.) | |
| Interface Features : | Position | Type | WLED Driver |
| - | Included in panel signal interface | No |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
