1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2. TIANMA TM050RDH03-41 Mechanical Details
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.045×0.135 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.135×0.135 (H×V) [188PPI] |
| Mechanical Size : | Active Area(mm) | 108(H) × 64.8(V) | Bezel Area(mm) | 111.1(H) × 67.9(V) |
| Outline Dim.(mm) | 120.7(H) × 75.8(V) | Depth(mm) | 3.10 (Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type |
| Other Spec : | Weight | 57.0g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
3. TIANMA TM050RDH03-41 Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock | Response(ms) | 20 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.20 |
4. TIANMA TM050RDH03-41 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - |
| Consumption | 297mW (Typ.) |
| Signal Type : | Parallel RGB (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Interface Features : | Position | - | Type | FPC |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| | | 1 pcs | 40 pins | 0.5 mm |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

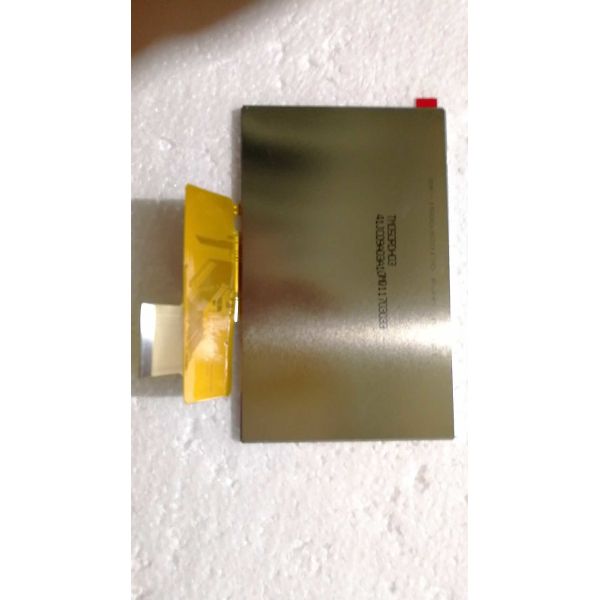

800×480 WVGA 188PPI 250cd/m² Viewing angle 70/70/50/70 TIANMA LCD Screen TM050RDH03-41 Images
|
