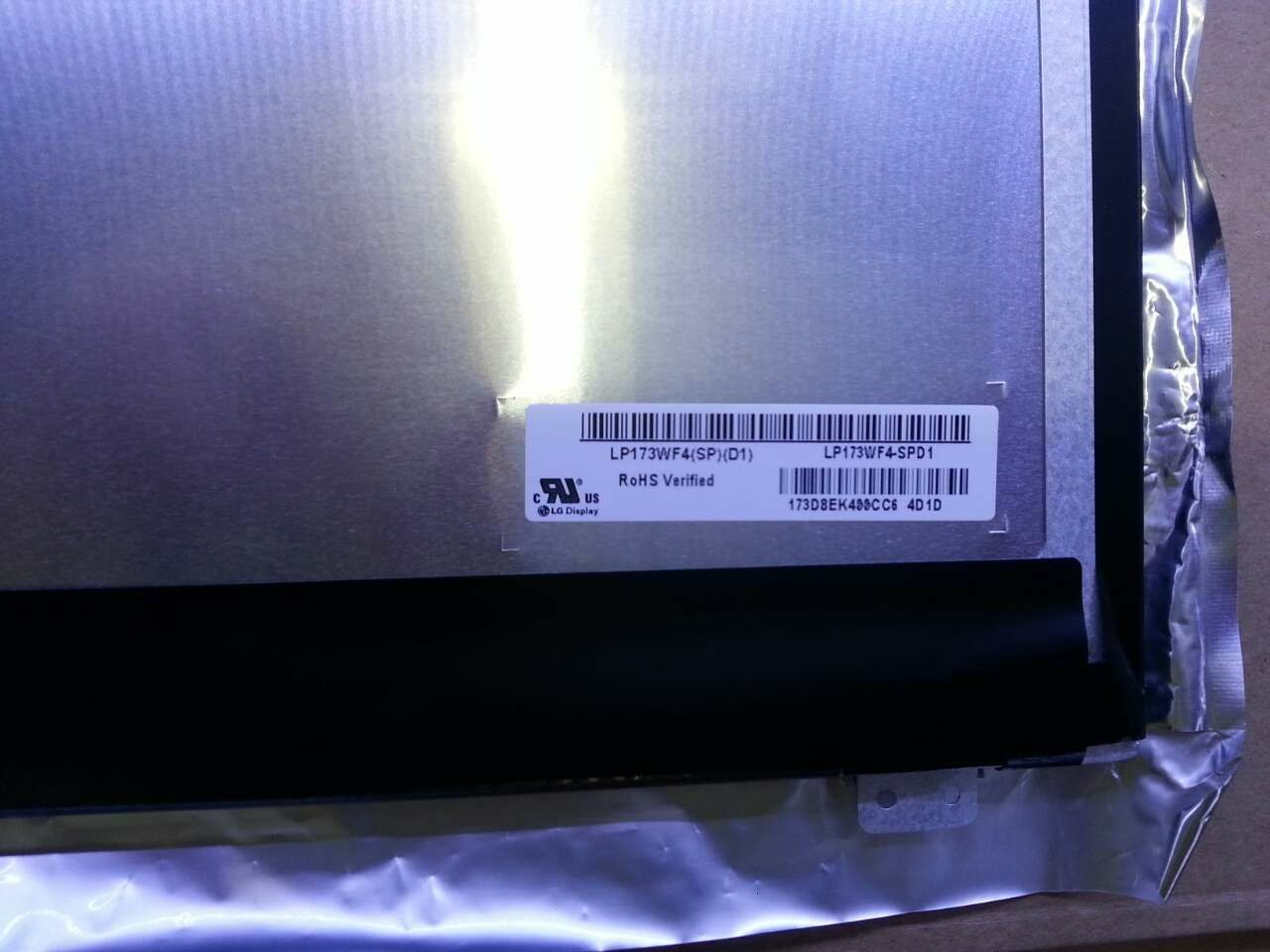

127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1

Name: 127PPI 173quot Industrial LCD Panel 300cdm2 19201080 LP173WF4SPD1
Brand: LG Display
Price: 1 USD

Wholesale 127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1 from china suppliers

Brand Name : LG Display

Model Number : LP173WF4-SPD1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP173WF4-SPD1

BRAND : LG Display

SIZE : 17.3INCH

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 [FHD] 127PPI

VIEWING ANGLEG : 80/80/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP173WF4-SPD1 Application Details

Basic Information :	Brand LP173WF4-SPD1Model Type a-Si TFT-LCD , LCM Used For 17.3 inchScreen Size Alias LP173WF4 (SP)(D1)
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C RoHS 1.5G (14.7 m/s²)Vibration

LG Display LP173WF4-SPD1 Mechanical Details

Pixel Features :	Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.0663×0.1989 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1989×0.1989 (H×V) [127PPI]
Mechanical Size :	Active Area(mm) 381.888(H) × 214.812(V) Bezel Area(mm) - Outline Dim.(mm) - Depth(mm) 5.7/6.2 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Wedge (PCBA Bent, T≥5.2mm) Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Face mounting holes (8 pcs) on up, down slugs
Other Spec :	Weight 550g (Max.) Treatment Antiglare

LG Display LP173WF4-SPD1 Optical Details

Basic Information :	Luminance(cd/m²) 300 (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/80 (Min.)(CR≥10) Display Mode AH-IPS, Normally Black, Transmissive Best View on Symmetry Response(ms) 25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 262K (6-bit) Color Temperature 6485K White Uniformity 1.40/1.60 (Typ./Max.)(13 points)

LG Display LP173WF4-SPD1 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply TBD Consumption TBD
Signal Type :	eDP (2 Lanes) Logic Voltage -
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration LS Mtron GT05Q-30S-H10-MN 0.5 mm 30 pins 1 pcs EDP-30P2L-020A

LG Display LP173WF4-SPD1 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 12K(Min.) (Hours)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 5.5/12.0/21.0V (Min./Typ./Max.) Current Supply TBD Consumption TBD

LG Display LP173WF4-SPD1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	20 pcs / box	-	478×365×328 mm (L×W×H)
