49 Inch WLED 1920x1080 45PPI Tft Lcd Screen 1500cd/M2 LD490EPN-UKH1

Brand Name : LG Display

Model Number : LD490EPN-UKH1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 160PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LD490EPN-UKH1

BRAND : LG Display

SIZE : 49 inch

BRIGHTNESS : 1500CD/M2

Lamp Type : WLED

RESOLUTION : 1920(3)×1080, FHD, 45PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LD490EPN-UKH1 Application Details

Basic Detail : Manufacturer Model Name LD490EPN-UKH1
Panel Type a-Si TFT-LCD , LCM Another Name LD490EPN (UK)(H1)
Panel Size 49 inch Designed For




Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

LG Display LD490EPN-UKH1 Optical Details

Basic Information : Luminance 1500 cd/m² (Typ.) Contrast Ratio 1300 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 9.5 (Typ.)(G to G) (ms)
Viewing Angle 89/89/89/89 (Min.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.279; Wy:0.292 Support Color 16.7M (8-bit)
Color Temperature 9972K White Uniformity 1.54 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 68% sRGB 95% coverage
Adobe RGB 71% coverage DCI-P3 71% coverage
Rec.2020 51% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity

LG Display LD490EPN-UKH1 Mechanical Details

Pixel Features : Number of Pixel 1920(3)×1080 [FHD] Arrangement RGBW Vertical Stripe
Dot Pitch(W×H) 0.18642×0.55926 mm Pixel Pitch(W×H) 0.55926×0.55926 mm [45PPI]
Physical Size : Active Viewing 1073.78(W)×604(H) mm Overall Dim. 1091.6(W)×621.8(H) mm
Bezel Opening 1079.8(W)×610(H) mm Overall Depth 12.7/31.2 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape / Portrait
Aspect Ratio(W:H) 16:9 Shape Style
Other Detail : Mass 11.8/12.0Kgs (Typ./Max.) Surface Antiglare (Haze 3%), Hard coating (2H)

LG Display LD490EPN-UKH1 Interface Details

Signal Electrical : Input Current 467/607mA (Typ./Max.) Input Voltage 12.0V (Typ.)
Consumption 5.6/7.3W (Typ./Max.) Signal Interface LVDS (2 ch, 8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE FI-RXE51S-HF 1 pcs 0.5 mm 51 pins

LG Display LD490EPN-UKH1 Lightting Details

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type
Exchange - Amount - Life 60K(Typ.) (Hours)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
YEONHO 20022WR-H14B2 1 pcs 2.0 mm 14 pins
Backlight Driver : With LED Driver
Driver Electrical : Input Current 3.79/4.17A (Typ./Max.) Input Voltage 24.0±2.4V
Consumption 90.9/100.1W (Typ./Max.)

LG Display LD490EPN-UKH1 Packing Details

Package Box : Amount Size (L×W×H) Weight
18 pcs / box 1300×1140×820 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

49 Inch WLED 1920x1080 45PPI Tft Lcd Screen 1500cd/M2 LD490EPN-UKH1


Product Tags:

45PPI Tft Lcd Screen



1920x1080 Tft Lcd Screen



49 Inch WLED Tft Lcd Display


Wholesale 49 Inch WLED 1920x1080 45PPI Tft Lcd Screen 1500cd/M2 LD490EPN-UKH1 from china suppliers

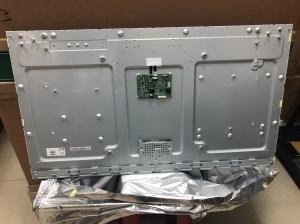

49 Inch WLED 1920x1080 45PPI Tft Lcd Screen 1500cd/M2 LD490EPN-UKH1 Images
