LD860EQD-FJM1 LG Display 86" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY 51PPI

Brand Name : LG Display

Model Number : LD860EQD-FJM1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 160PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LD860EQD-FJM1

BRAND : LG Display

SIZE : 86 inch

BRIGHTNESS : 500 cd/m² (Typ.)

Lamp Type : WLED

RESOLUTION : 3840(RGB)×2160 [UHD] 51PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LD860EQD-FJM1 Application Features

Basic Information : Brand Name Model Name Type Model Alias
LD860EQD-FJM1 a-Si TFT-LCD , LCM LD860EQD (FJ)(M1)
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
0 ~ 50 °C -20 ~ 60 °C

LG Display LD860EQD-FJM1 Mechanical Features

Screen Size : 86"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
3840(RGB)×2160, UHD RGB Vertical Stripe 0.1645×0.4935 mm 0.4935×0.4935 mm [51PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
1895.04×1065.96 mm 1897.0×1068.0 mm 1922.2×1093.2 mm 16.143.3 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
34.1/35.8Kgs (Typ./Max.) - Antiglare (Haze 3%), Hard coating (2H)

LG Display LD860EQD-FJM1 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
500 cd/m² (Typ.) IPS, Normally Black, Transmissive 1200:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 8 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
9972K 16.7M/1.07B (8-bit / 8-bit + Dithering) X:0.279; Y:0.292
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
71% 97% 73%
DCI-P3 Coverage Rec.2020 Coverage Remarks
73% 53% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LD860EQD-FJM1 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type 30K(Min.) - - -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
YEONHO 20022WR-H14B2 1 pcs 14 pins 2.0 mm
YEONHO 20022WR-H12B2 1 pcs 12 pins 2.0 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
24.0±2.4V 8.37/9.07A (Typ./Max.) 200.9/217.7W (Typ./Max.)

LG Display LD860EQD-FJM1 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
12.0V (Typ.) 1.11/1.45A (Typ./Max.) 13.4/17.4W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
V-by-One 16 lane Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JAE FI-RXE51S-HF 1 pcs 51 pins 0.5 mm
JAE FI-RXE41S-HF 1 pcs 41 pins 0.5 mm
YEONHO 20037WR-H05 1 pcs 5 pins 2.0 mm

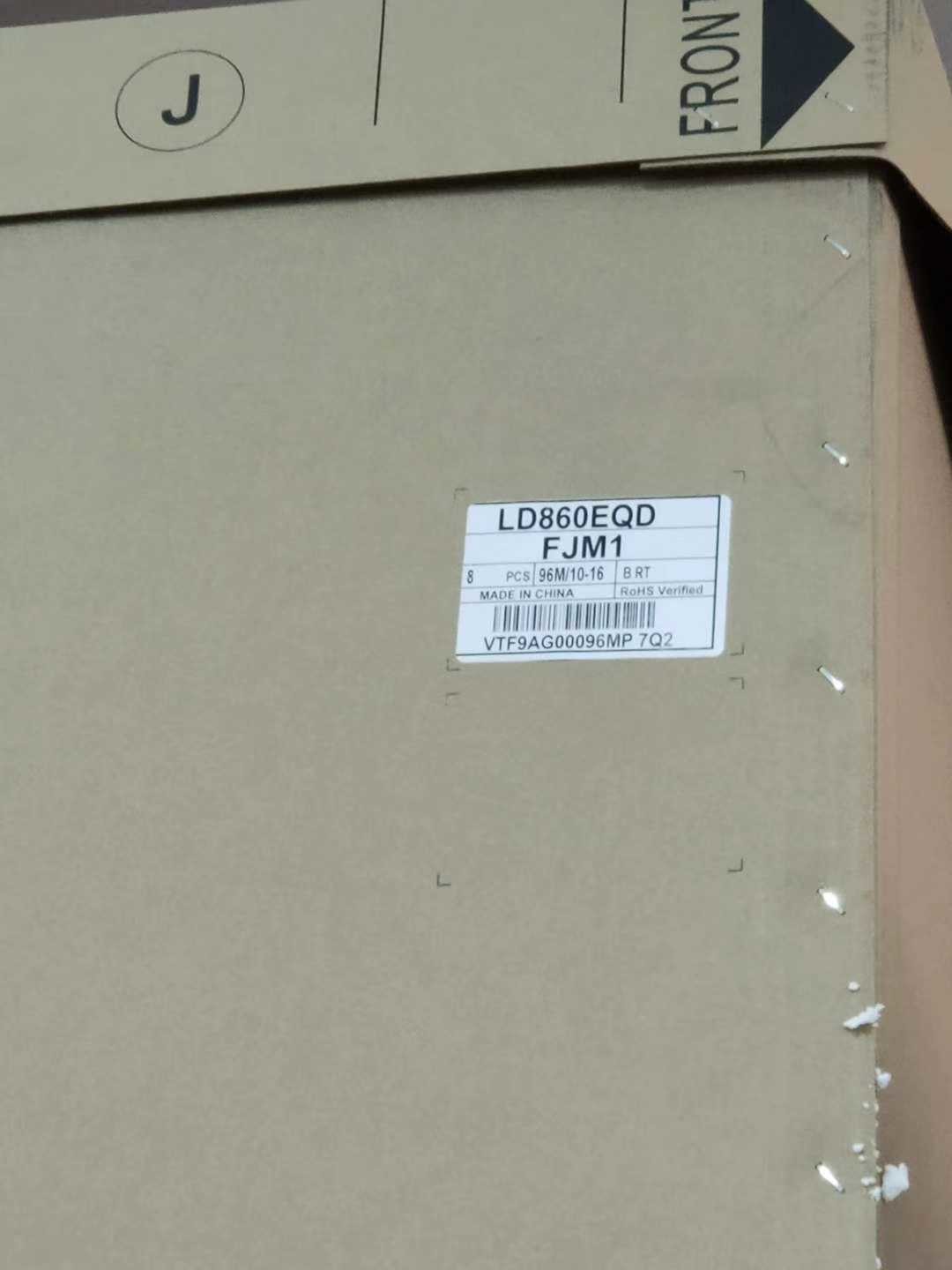

LG Display LD860EQD-FJM1 Packing Features

Package Box : Amount Weight Size (L×W×H)
6 pcs / box - 2280×780×1420 mm (L×W×H)


FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
