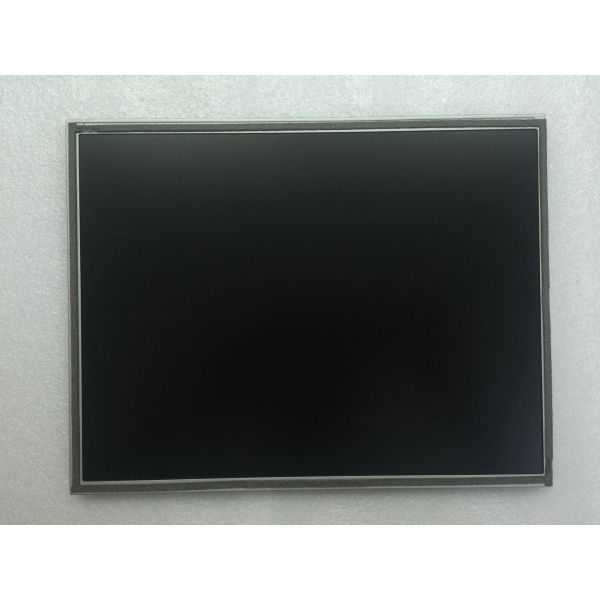

TCG121XGLPBPNN-AN40 Kyocera 12.1INCH LCM 1024×768RGB 1200NITS WLED LVDS INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG121XGLPBPNN-AN40

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG121XGLPBPNN-AN40

SIZE : 12.1INCH

RESOLUTION : 1024×768RGB

BRIGHTNESS : 1200 cd/m² (Typ.)

Signal Interface : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Lamp Type : WLED , 70K hours , With LED Driver

Environment : Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG121XGLPBPNN-AN40 Application Details

Basic Information : Brand Model TCG121XGLPBPNN-AN40
Type LCM a-Si TFT-LCD Used For



Screen Size 12.1" Alias -
Environment : Storage Temp. -30 ~~ 80 °C Operating Temp. -30 ~~ 80 °C
RoHS Vibration -

Kyocera TCG121XGLPBPNN-AN40 Mechanical Details

Pixel Features : Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.080×0.240 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.240×0.240 (H×V) [105PPI]
Mechanical Size : Active Area(mm) 245.76(H) × 184.32(V) Bezel Area(mm) 249.0(H) × 187.5(V)
Outline Dim.(mm) 260.5(H) × 203(V) Depth(mm) 9.1/10.9 (Typ./Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Side mounting holes (6-M3) on left, right bezel
Other Spec : Weight 555g Treatment Antiglare

Kyocera TCG121XGLPBPNN-AN40 Optical Details

Basic Information : Luminance(cd/m²) 1200 (Typ.) Contrast Ratio 750:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode AWV, Normally Black, Transmissive
Best View on Symmetry Response(ms) 18/12 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.320; Y:0.345 Display Colors 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 6043K White Uniformity -
1931 Color Gamlt : NTSC Ratio 51% sRGB 71% coverage
Adobe RGB 53% coverage DCI-P3 52% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -

Kyocera TCG121XGLPBPNN-AN40 Electronics Details

Frame Rate : 60Hz
Reverse Scan : Yes (180°)

Kyocera TCG121XGLPBPNN-AN40 Interface Details

Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 300/390mA (Typ./Max.)
Signal Type : LVDS (1 ch, 6/8-bit) Signal Voltage -
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
I-PEX 20186-020E-11F 1 pcs 20 pins 1.25 mm LVDS-20P1C8B-010H

Kyocera TCG121XGLPBPNN-AN40 Backlight Details

Backlight Features: Shape - Type WLED Position Edge light type
Replacement - Quantity - Life Time 70K(Typ.) (Hours)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST SM06B-SHLS-G-TF(LF)(SN) 1 pcs 6 pins 1.0 mm
Backlight Driver : With LED Driver
Driver Electrical : Voltage Supply 12.0V (Typ.) Current Supply 0.9/1.1A (Typ./Max.)


FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TCG121XGLPBPNN-AN40 Kyocera 12.1INCH LCM 1024×768RGB 1200NITS WLED LVDS INDUSTRIAL LCD DISPLAYTCG121XGLPBPNN-AN40 Kyocera 12.1INCH LCM 1024×768RGB 1200NITS WLED LVDS INDUSTRIAL LCD DISPLAY
