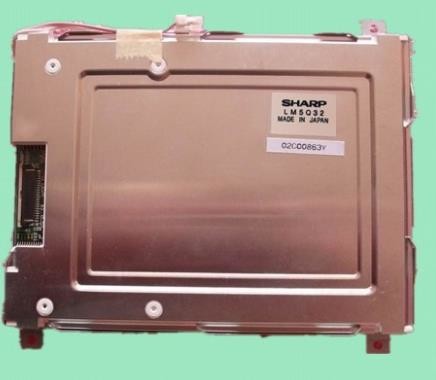

5" LCM 320×240RGB 120cd/m² LM5Q32 Sharp TFT LCD Display

Name: 5quot LCM 320240RGB 120cdm LM5Q32 Sharp TFT LCD Display
Brand: SHARP
Price: 1 USD

Wholesale 5" LCM 320×240RGB 120cd/m² LM5Q32 Sharp TFT LCD Display from china suppliers

Brand Name : SHARP

Model Number : LM5Q32

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Panel Brand : Sharp

Panel Model : LM5Q32

Brightness : 120 cd/m² (Typ.)

Resolution : 320(RGB)×240, QVGA, 80PPI

Panel Size : 5.0"

Lamp Type : 1 pcs CCFL , 15K hours , Without Driver

Signal Interface : Parallel Data (8-bit) , 20 pins Connector

Environment : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 65 °C

Contact Now

Sharp LM5Q32 Optical Details

Basic Information :	Brightness	120 cd/m² (Typ.)	Contrast Ratio	30:1 (Typ.) (Transmissive)
	Viewing Angle	35/35/15/25 (Typ.)(CR≥5)	Optical Mode	STN, Normally Black, Transmissive
	Viewing Direction	6 o'clock	Response Time	150/50 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.290; Wy:0.300	Color Numbers	Color
Color Performance :	Color Temperature	8558K	White Uniformity	-

Sharp LM5Q32 Mechanical Details

Pixel Features :	Pixel Format	320(RGB)×240 [QVGA]	Dot Pitch	0.105×0.315 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.315×0.315 mm (H×V) [80PPI]
Mechanical Size :	Display Area	100.8×75.6 mm (H×V)	Bezel Area	103.4×78.3 mm (H×V)
Mechanical Size :	Outline Dim.	134×113 mm (H×V)	Outline Depth	10.5 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Other Features :	Weight	150g (Typ.)	Surface	-

Sharp LM5Q32 Backlight Details

Back-light Features:	Lamp Shape	Straight	Lamp Type	CCFL	Life Time	15K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	1 pcs	Position	Edge light type (Top side)
Lamp Electrical :	Voltage Input	720V (Typ.)		Current Input	4.0±1mA
	Frequency	30/80KHz (Min./Max.)		Kick-off Voltage	1280/1600V (Max.)(Ta=+25/0℃)
	Consumption	2.9W (Typ.)
Interface Features :	Type	Connector	Position	-	Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	JST	BHR-03VS-1	4.0 mm	3 pins	1 pcs	BLL-3PINS-HNL

Sharp LM5Q32 Interface Details

Signal Systerm :	Parallel Data (8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	5.0V (Typ.)		Current Input	3/5mA (Typ./Max.)
Signal Electrical :	Consumption	310/400mW (Typ./Max.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	FCI	SFR20R-1ST	0.8 mm	20 pins	1 pcs

LM5Q32 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 100.8(W)×75.6(H) mm, outline size of 134(W)×113(H)×10.5(D) mm, viewing area size of 103.4(W)×78.3(H) mm, net weight of 150g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM5Q32 can provides 120 cd/m² display brightness 30:1 transimissive contrast ratio, 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 150/50 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 15K hours, external backlight driver is additionally needed.
