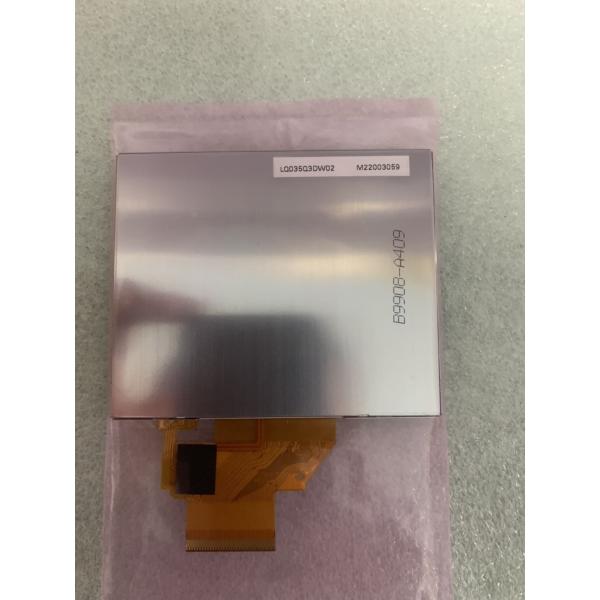

3.5" LCM 320×240RGB 450cd/m² LQ035Q3DW02 Sharp TFT LCD Display

Name: 35quot LCM 320240RGB 450cdm LQ035Q3DW02 Sharp TFT LCD Display
Brand: SHARP
Price: 1 USD

Wholesale 3.5" LCM 320×240RGB 450cd/m² LQ035Q3DW02 Sharp TFT LCD Display from china suppliers

Brand Name : SHARP

Model Number : LQ035Q3DW02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : 120 pcs / box

Model : LQ035Q3DW02

Diagonal Size : 3.5 inch

Type : a-Si TFT-LCD , LCM

Configuration : RGB Vertical Stripe

Luminance : 450 cd/m² (Typ.)

Light Source : WLED [7S1P] , W/O Driver

Pixel Format : 320(RGB)×240 [QVGA] 115PPI

Environment : Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C

Contact Now

Sharp LQ035Q3DW02 Application Details

Basic Detail :	Manufacturer	SHARP	Model Name	LQ035Q3DW02
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	3.5 inch	Designed For
Maximum Ratings :	OP Temperature	-10 ~ 70 °C	ST Temperature	-25 ~ 70 °C

Sharp LQ035Q3DW02 Mechanical Details

Pixel Features :	Number of Pixel	320(RGB)×240 [QVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0735×0.2205 mm	Pixel Pitch(W×H)	0.2205×0.2205 mm [115PPI]
Physical Size :	Active Viewing	70.56(W)×52.92(H) mm	Overall Dim.	76.9(W)×63.9(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	3.5 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Other Detail :	Mass	33.0g (Typ.)	Surface	Antiglare

Sharp LQ035Q3DW02 Lightting Details

Lamp Features:	Lamp Shape	1 string	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	7S1P	Life	-
Lamp Electrical :	Input Current	20mA (Typ.)		Input Voltage	22.4/24.5V (Typ./Max.)
Lamp Electrical :	Consumption	448mW (Typ.)
Interface Features :	Position	-	Physical Type	Included in panel signal interface
Backlight Driver :	No

Sharp LQ035Q3DW02 Optical Details

Basic Information :	Luminance	450 cd/m² (Typ.)	Contrast Ratio	500 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	15/15 (Typ.)(Tr/Td) (ms)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	ASV, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.310; Wy:0.340	Support Color	262K (6-bit)
Color Performance :	Color Temperature	6551K	White Uniformity	-

Sharp LQ035Q3DW02 Interface Details

Signal Electrical :	Input Current	0.55/9.5mA (Typ.)(IDDIO/ICI)		Input Voltage	3.3/3.3V (Typ.)(VDDIO/VCI)
Signal Electrical :	Consumption	-	Signal Interface	Parallel RGB (1 ch, 6-bit) + SPI
Interface Features :	Position	-	Physical Type	FPC
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :			1 pcs	0.3 mm	67 pins

LQ035Q3DW02 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.56(W)×52.92(H) mm, outline size of 76.9(W)×63.9(H) mm, with surface treament of Antiglare, net weight of 33.0g (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ035Q3DW02 can provides 450 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.
