MT190EN02 V.Y Innolux 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : INNOLUX

Model Number : MT190EN02 V.Y

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : MT190EN02 V.Y

BRAND : INNOLUX

SIZE : 19.0INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1280(RGB)×1024, SXGA, 86PPI

VIEWING ANGLEG : 85/85/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C

Contact Now

Innolux MT190EN02 V.Y Application Details

Basic Detail : Manufacturer Model Name MT190EN02 V.Y
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 19.0 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -25 ~ 60 °C
Vibration Level - RoHS
Features :



Remarks : TCO’03 compliance

Innolux MT190EN02 V.Y Optical Details

Basic Information : Luminance 250 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 1.5/3.5 (Typ.)(Tr/Td) (ms)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 96% coverage
Adobe RGB 75% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux MT190EN02 V.Y Mechanical Details

Pixel Features : Number of Pixel 1280(RGB)×1024 [SXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.098×0.294 mm Pixel Pitch(W×H) 0.294×0.294 mm [86PPI]
Physical Size : Active Viewing 376.32(W)×301.056(H) mm Overall Dim. 396(W)×324(H) mm
Bezel Opening 380.3(W)×305.0(H) mm Overall Depth 16.5 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 5:4 Shape Style Normal bezel
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Detail : Mass 2.30Kgs (Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

Innolux MT190EN02 V.Y Interface Details

Signal Electrical : Input Current 0.7/1.0A (Typ./Max.) Input Voltage 5.0V (Typ.)
Consumption - Signal Interface LVDS (2 ch, 8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
FOXCONN GS23302-0311S-7F 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160A

Innolux MT190EN02 V.Y Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange - Amount 2 pcs Life 50K(Min.) (Hours)
Lamp Electrical : Input Current 2.0/7.5/8.0mA (Min./Typ./Max.) Input Voltage 670±67V
Frequency 40/60KHz (Min./Max.) Turn-on Voltage 1380/1600V (Max.)(Ta=+25/0℃)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
2 pcs 2 pins BLL-2PINS-HL
Backlight Driver : No

Innolux MT190EN02 V.Y Packing Details

Package Box : Amount Size (L×W×H) Weight
7 pcs / box - -

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

MT190EN02 V.Y Innolux 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

NTSC Lcd Video Panel



VGA Touch Lcd Video Display



RGB Vertical LCD Display


Wholesale MT190EN02 V.Y Innolux 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

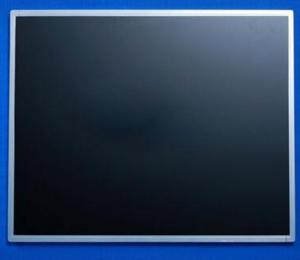

MT190EN02 V.Y Innolux 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY Images
