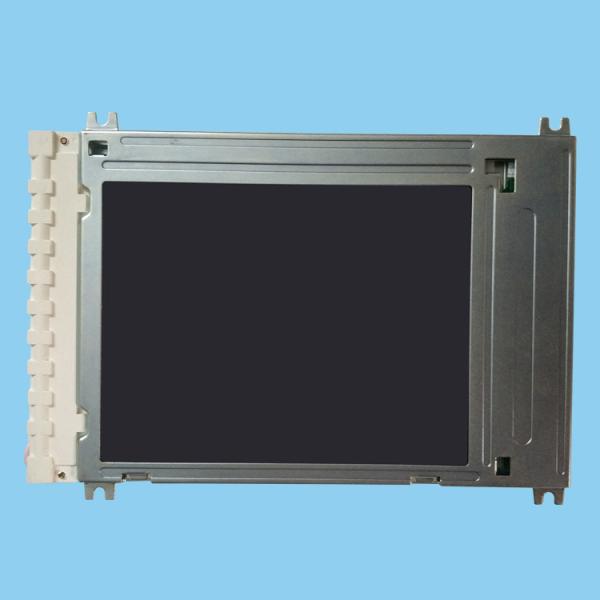

KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY

Name: KG047QVLAAG020 Kyocera 47INCH LCM 320240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

Wholesale KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : Kyocera

Model Number : KG047QVLAA-G020

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 300PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : KG047QVLAA-G020

SIZE : 4.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 300 cd/m² (Typ.)

Interface Type : Parallel Data (4-bit) 20 pins Connector

Light Source : WLED , 40K hours , W/O Driver

Environment : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now

Kyocera KG047QVLAA-G020 Application Details

Basic Info :	Panel Brand KG047QVLAA-G020Panel Model Diagonal Size 4.7" Application STN-LCD , LCMPanel Type Model Alias -
Reliability :	Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C RoHS State -Vibration Rating

Kyocera KG047QVLAA-G020 Mechanical Details

Pixel Features :	Pixel Format 320×240, QVGA Dot Pitch 0.300×0.300 mm (H×V) Configuration Rectangle Pixel Pitch 0.300×0.300 mm (H×V) [84PPI]
Mechanical Size :	Display Area 95.97×71.97 mm (H×V) Bezel Area 100.6×76.6 mm (H×V) Outline Dim. 122.4×90 mm (H×V) Outline Depth 5.7/9.9 (Typ./Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Other Features :	Weight 90g (Typ.) Surface Glare (Haze 0%)

Kyocera KG047QVLAA-G020 Optical Details

Basic Information :	Brightness 300 cd/m² (Typ.) Contrast Ratio 4:1 (Typ.) (Transmissive) Viewing Angle 45/45/20/40 (Typ.)(CR≥2) Optical Mode STN, Blue mode (Negative), Transmissive Viewing Direction - Response Time 380/120 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.340; Wy:0.350 Color Numbers Monochrome Color Temperature 5201K Uniformity -

Kyocera KG047QVLAA-G020 Electronics Details

Frame Frequency :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

Kyocera KG047QVLAA-G020 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 40K(Typ.) (Hours) Replacement - Lamp Shape - Position Edge light type
Lamp Electrical :	Voltage Input 23.7/27.2V (Typ./Max.) Current Input 10.0mA (Typ.)
Interface Features :	Type FPC Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration 1.0 mm 4 pins 1 pcs BLE-4PINS-ACCA

Kyocera KG047QVLAA-G020 Interface Detail

Signal Systerm :	Parallel Data (4-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3/5.0V (Typ.)(VDD) Current Input 23/16mA (Typ.)(3.3V/5.0V)(IDD)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration Kyocera Elco 08-6210-020-340-800+ 0.5 mm 20 pins 1 pcs PD-20P1C4B-010A
