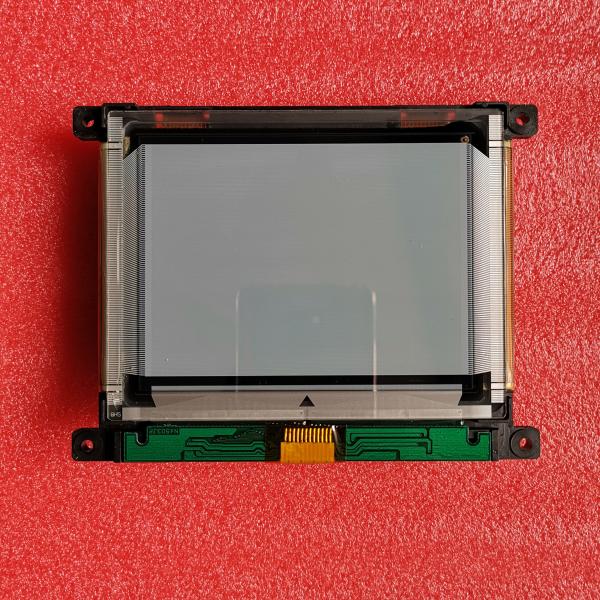

F-51477GNF-LW-AG Kyocera 4.7INCH LCM 320×240RGB 280NITS WLED INDUSTRIAL LCD DISPLAY

Name: F51477GNFLWAG Kyocera 47INCH LCM 320240RGB 280NITS WLED INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

Wholesale F-51477GNF-LW-AG Kyocera 4.7INCH LCM 320×240RGB 280NITS WLED INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : Kyocera

Model Number : F-51477GNF-LW-AG

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : F-51477GNF-LW-AG

SIZE : 4.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 280 cd/m² (Typ.)

Signal Type : Parallel Data (4-bit) , 14 pins FPC

Backlight : WLED , With LED Driver

Max. Ratings : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Contact Now

OPTREX F-51477GNF-LW-AG Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		F-51477GNF-LW-AG	FSTN-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C	-

OPTREX F-51477GNF-LW-AG Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	280 (Typ.)	-	250/140 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	6 o'clock	STN, Black/White (Positive), Transflective	20 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	-	Monochrome	-
Performance :	3D Tech	Sunlight Visibility	Reflectance
Performance :	-	Sunlight Readable	-

OPTREX F-51477GNF-LW-AG Mechanical Features

Panel Size :	4.7"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	320×240 [QVGA]	Rectangle	0.300×0.300 [84PPI]	0.300×0.300
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	95.97(H) × 71.97(V)	-	129.4(H) × 94(V)	8.8 (Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	110g (Max.)	-	-

OPTREX F-51477GNF-LW-AG Electronics Features

Reverse Scan :	No
Vertical Frequency :	70Hz
Driving Method :	Duty: 1/240 , Bias: 1/14

OPTREX F-51477GNF-LW-AG Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	-	-	-	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	21.0V (Typ.)		15mA (Typ.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Included in panel signal interface

OPTREX F-51477GNF-LW-AG Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	5.0V (Typ.)(With LED Backlight)		120/180mA (Typ./Max.)			-
Interface Features :	Position	Signal				Type
Interface Features :	-	Parallel Data (4-bit)				FPC
FPC Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
FPC Detail :				14 pins	1 pcs
