Sharp LK695D3LA18 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.2672×0.8015 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.8015×0.8015 (H×V) [31PPI] |
| Mechanical Size : | Active Area(mm) | 1538.88(H) × 865.62(V) | Bezel Area(mm) | 1544.0(H) × 876.8(V) |
| Outline Dim.(mm) | 1566(H) × 901.8(V) | Depth(mm) | 21.8/31.6 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape / Portrait |
| Other Spec : | Weight | 25.0±1.5Kgs | Treatment | Antiglare, Hard coating (2H) |
Sharp LK695D3LA18 Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 4000:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | ASV, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 4/6 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.282; Y:0.288 | Display Colors | 1.07B (10-bit) |
| Color Temperature | 9852K | White Uniformity | 1.33/1.43 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 93% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 76% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LK695D3LA18 Interface Details
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.75/2.0A (Typ./Max.) |
| Signal Type : | LVDS (4 ch, 10-bit) | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| ACES | 91213-0510Y | 1 pcs | 51 pins | 0.5 mm | |
| ACES | 91213-0410Y | 1 pcs | 41 pins | 0.5 mm | |
Sharp LK695D3LA18 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | 3 strings | Life Time | 50K(Typ.) (Hours) |
| Lamp Electrical : | Voltage Supply | 189.6/204.6/221.5V (Min./Typ./Max.) | Current Supply | 260mA (Typ.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JWT | A2010H00-15P-SHP | 1 pcs | 15 pins | 2.0 mm | |
| Backlight Driver : | No |
LK695D3LA18 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1538.88(W)×865.62(H) mm, outline size of 1566(W)×901.8(H)×31.6(D) mm, viewing area size of 1544.0(W)×876.8(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 25.0±1.5Kgs. As a ASV, Normally Black, Transmissive LCM product, LK695D3LA18 can provides 350 cd/m² display brightness 4000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 4/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 73% (NTSC). This product adopted 3 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed.
Product Tags:
|
|

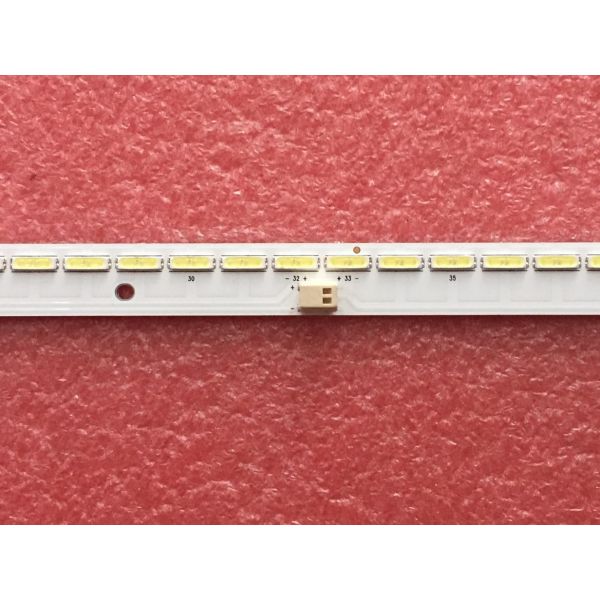

70" LCM 1920×1080RGB 350cd/m² LK695D3LA18 Sharp TFT LCD Display Images
|
