Mitsubishi AC150XA04 Application Details
| Basic Detail : | Manufacturer | | Model Name | AC150XA04 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - |
| Panel Size | 15.0 inch | Designed For | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | 1.0G (9.8 m/s²) |
Mitsubishi AC150XA04 Optical Details
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 2/6 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 63% | sRGB | 84% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 66% coverage |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Mitsubishi AC150XA04 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326.5(W)×253.5(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm | Overall Depth | 12.0±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass | 1.05Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
Mitsubishi AC150XA04 Interface Details
| Signal Electrical : | Input Current | 330/550mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H(56) | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H |
Mitsubishi AC150XA04 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
| Exchange | No | Amount | - | Life | 70K(Typ.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3800K-F06N-03L | 1 pcs | 1.25 mm | 6 pins | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 670/830mA (Typ./Max.) | Input Voltage | 12.0±1.2V |
| Consumption | 8.1/9.0W (Typ./Max.) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×12.5(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.05Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AC150XA04 can provides 450 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 2/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. AC150XA04 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
Product Tags:
|
|

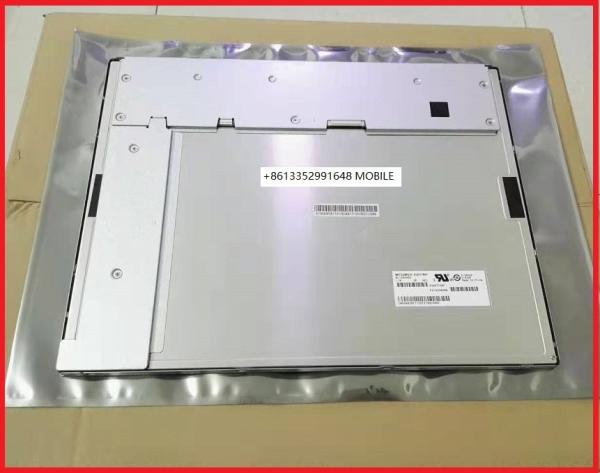

AC150XA04 Mitsubishi 15.0 inch 1024(RGB)×768 450 cd/m² Storage Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY Images
|
