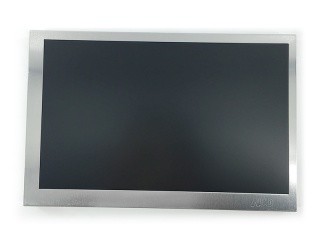

C090XVC01.0 AUO 9.0" 768(RGB)×1024, XGA 141PPI 600 cd/m² 70/70/70/70
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2. AUO C090XVC01.0 Mechanical Features:
| Panel Size : | 9.0 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 768(RGB)×1024, XGA | RGB Vertical Stripe | 0.060×0.180 mm | 0.180×0.180 mm [141PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 138.24×184.32 mm | - | 159.36×198.5 mm | 7.8 (Typ.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | |
| Other Features : | Panel Cover | Weight | Surface |
| - | 425±42.5g | Hard coating, Antireflection |
3. AUO C090XVC01.0 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 600 cd/m² (Typ.) | AMVA, Normally Black, Transmissive | 1100:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 70/70/70/70 (Min.)(CR≥10) | Symmetry | 45 (Max.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 16.7M (8-bit) | - |
4. AUO C090XVC01.0 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | 2 strings | 8S2P | 10K(Min.) | - |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
| 80/85mA (Typ./Max.) | 25.6/28.8V (Typ./Max.) |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 138.24(W)×184.32(H) mm, outline size of 159.36(W)×198.5(H) mm, with surface treament of Hard coating, Antireflection, net weight of 425±42.5g. As a AMVA, Normally Black, Transmissive LCM product, C090XVC01.0 can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 70/70/70/70 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 45 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 8S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours. C090XVC01.0 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/13/15/-9V (Typ.)(VDD/AVDD/VGH/VGL)
