8.4 Inch C084XAT01.0 Automotive TFT Displays With Touch 30 (Max.)(Tr+Td)

Brand Name : AUO

Model Number : C084XAT01.0

Certification : ISO9001

MOQ : 1PCS

Payment Terms : T/T, Western Union, PAYPAL, ESCROW

Supply Ability : 500PCS/MONTH

Delivery Time : 1-3 days

Packaging Details : With Original Package

SIZE : 8.4 Inch

RESOLUTION : 1024(RGB)×768, XGA, 152PPI

Best View on : Symmetry

TEMPERATURE : Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C

Signal Interface : WLED

Touch Panel : PCAP

Outline Dim. : 185.5(W)×143.9(H) mm

Bezel Opening : 176.92(W)×134.33(H) mm

Contact Now

8.4 Inch C084XAT01.0 Automotive TFT Displays With Touch 30 (Max.)(Tr+Td)

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2. AUO C084XAT01.0 Mechanical Features:

Screen Size :	8.4"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1024(RGB)×768, XGA	RGB Vertical Stripe	0.0555×0.1665 mm	0.1665×0.1665 mm [152PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	170.496×127.872 mm	176.92×134.33 mm	185.5×143.9 mm	9.5 (Typ.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	-	-	With touch controller	PCAP
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	420g±42g	-	Antiglare, Antireflection

3. AUO C084XAT01.0 Optical Features:

Basic Information :	Luminance	Work Mode	Contrast Ratio
	-	AHVA, Normally Black, Transmissive	800:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	-	30 (Max.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	-	16.7M (8-bit)

4. AUO C084XAT01.0 Interface Features:

Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (1 ch, 8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :			1 pcs	40 pins

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

8.4 Inch C084XAT01.0 Automotive TFT Displays With Touch 30 (Max.)(Tr+Td)

Product Tags:

CCFL CSTN Automotive TFT Display

WLED FSTN Automotive TFT Display

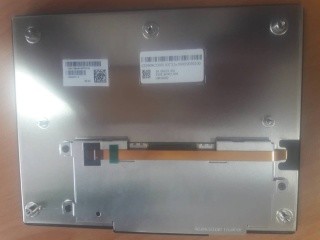

8.4 Inch C084XAT01.0 Automotive TFT Displays With Touch 30 (Max.)(Tr+Td) Images
