G190EG02 V1 19.0 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte Mass production from Jun. 2011 OverviewSpecs

Brand Name : AUO

Model Number : G190EG02 V1

Certification : ISO9001

Place of Origin : TAIWAN

MOQ : 1PCS

Price : 40USD

Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW

Supply Ability : 1000PCS

Delivery Time : 1 DAY

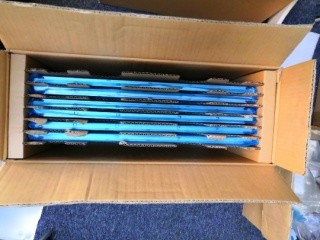

Packaging Details : Package Box :20 pcs / box 14.8 Kgs Box Size :570×320×420 mm (L×W×H)

Size : 19.0

Resolution : 1280(RGB)×1024 (SXGA) 86PPI

Brightness : 300 cd/m² (Typ.)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Display Colors : 16.7M 70% NTSC

Environment : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C

Bezel Opening : 380.32(W)×305.06(H) mm

Outline(mm) : 396 × 324 × 18.9 (H×V×D)

Contact Now

AUO G190EG02 V1 Mechanical Features

Screen Size :	19.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1280(RGB)×1024, SXGA	RGB Vertical Stripe	0.098×0.294 mm	0.294×0.294 mm [86PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	376.32×301.056 mm	380.32×305.06 mm	396×324 mm	18.9 (Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	5:4	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	1.75Kgs (Typ.)	-	Antiglare

AUO G190EG02 V1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	300 cd/m² (Typ.)	MVA, Normally Black, Transmissive	2000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	15/5 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	69%	92%	71%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	72%	52%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G190EG02 V1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type (Bottom side)	50K(Min.)	-	-	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :			110mA (Typ.)			20.2/22.6W (Typ./Max.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Connector
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	STM	MS24019RHD	1 pcs	9 pins	1.25 mm
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	12.0V (Typ.)		1.87/2.1A (Typ./Max.)			22.4/25.1W (Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×18.9(D) mm, viewing area size of 380.32(W)×305.06(H) mm, with surface treament of Antiglare, net weight of 1.75Kgs (Typ.). As a MVA, Normally Black, Transmissive LCM product, G190EG02 V1 can provides 300 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G190EG02 V1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
