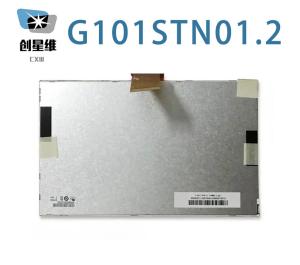

AUO G101STN01.2 Overview
AU Optronics Corp. (hereafter called AUO) G101STN01.2 is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -30 ~ 70°C .
AUO G101STN01.2 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 7/9 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 47% coverage |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101STN01.2 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×600 [WSVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0725×0.2088 mm | Pixel Pitch(W×H) | 0.2175×0.2088 mm [117PPI] |
| Physical Size : | Active Viewing | 222.72(W)×125.28(H) mm | Overall Dim. | 235(W)×143(H) mm |
| Bezel Opening | 224.72(W)×127.28(H) mm | Overall Depth | 5.0±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | |
| Fixation : | Without |
| Other Detail : | Mass | 340g (Max.) | Surface | Antiglare, Hard coating (3H) |
AUO G101STN01.2 Lightting Details
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
| Exchange | - | Amount | 8S3P | Life | 50K(Typ.) (Hours) |
| Lamp Electrical : | Input Current | 90mA (Typ.) | Input Voltage | 25.6/31.7V (Typ./Max.) |
| Consumption | 2.3/2.85W (Typ./Max.) |
| Interface Features : | Position | | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | H201K-P02N-02B | 1 pcs | 1.25 mm | 2 pins | BLE-2PINS-AC |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|
G101STN01.2 AUO 10.1 INCH WLED Backlight，Life ≥ 50K hours，6/8 bit，Matte Images
|
