NL6448AC33-24 NLT 10.4INCH 190CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISP

Brand Name : NEC

Model Number : NL6448AC33-24

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 800PCS

Delivery Time : 2-3day

Packaging Details : STANDARD PACKING

MODEL NUMBER : NL6448AC33-24

BRAND : NEC

SIZE : 10.4INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 190CD/M2

Lamp Type : CCFL

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

NEC NL6448AC33-24 Summary

The NL6448AC33-24 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²).

NEC NL6448AC33-24 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		NL6448AC33-24	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C	2.0G (19.6 m/s²)
Designed For :

NEC NL6448AC33-24 Mechanical Features

Panel Size :	10.4 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.110×0.330 mm	0.330×0.330 mm [76PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	211.2×158.4 mm	215.4×161.8 mm	243×185.1 mm	10.7±0.5 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Fixation :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	510g (Typ.)(With inverter)	-

NEC NL6448AC33-24 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	190 cd/m² (Typ.)	SFT, Normally Black, Transmissive	150:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	80/80/80/80 (Typ.)(CR≥10)	Symmetry	50 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	-	262K (6-bit)	-
Luminance Variation :	1.25/1.40 (Typ./Max.)(5 points)

NEC NL6448AC33-24 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	400/300mA (Typ.)(ICC)		3.3/5.0V (Typ.)(VCC)			-
Voltage for Display Signals :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	CMOS (1 ch, 6-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	HRS	DF9C-31P-1V	1 pcs	1.0 mm	31 pins

EC NL6448AC33-24 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Edge light type (Top side)	Straight	2 pcs	-	Replaceable (104LHS-17L)
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	With Inverter
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
	JAE	LZ-5P-SL-SMT	1 pcs	1.25 mm	5 pins
	JAE	IL-Z-3PL-SMTY	1 pcs	1.25 mm	3 pins
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	0.48/0.55A (Typ./Max.)		12.0V (Typ.)			5.76W (Typ.)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL6448AC33-24 NLT 10.4INCH 190CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISP

Product Tags:

LVDS TFT LCD Display

Transmissive NEC TFT Display

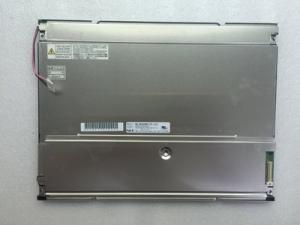

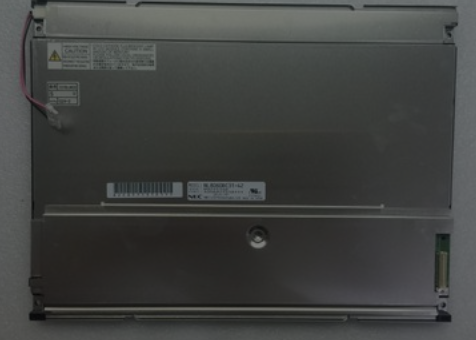

NL6448AC33-24 NLT 10.4INCH 190CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISP Images
