NL10276BC20-18D NLT 10.4INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temperature: -30 ~ 80 °C INDUSTRIAL L

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

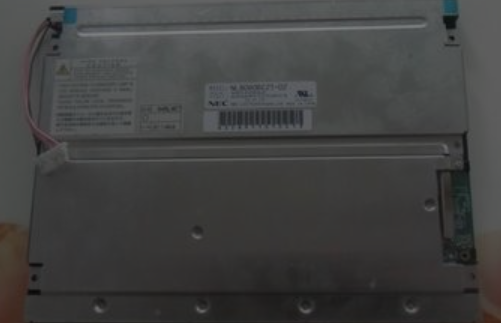

NL10276BC20-18D NLT 10.4INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temperature: -30 ~ 80 °C INDUSTRIAL L

  • 1
  • 2
  • 3

Brand Name : NEC

Model Number : NL10276BC20-18D

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 1000PCS

Delivery Time : 2-3DAYS

Packaging Details : STANDARD PACKING

Price : 120USD

MODEL NUMBER : NL10276BC20-18D

BRAND : NEC

SIZE : 10.4INCH

RESOLUTION : 1024×768RGB

Lamp Type : LVDS

TEMPERATURE RANGE : Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now

NEC NL10276BC20-18D Summary

NEC LCD Technologies, Ltd. (hereafter called NEC) NL10276BC20-18D is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

EC NL10276BC20-18D Application Details

Basic Detail : Manufacturer Model Name NL10276BC20-18D
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 10.4 inch Designed For
Maximum Ratings : OP Temperature -30 ~ 80 °C ST Temperature -30 ~ 80 °C
Vibration Level 2.0G (19.6 m/s²) RoHS

NEC NL10276BC20-18D Optical Details

Basic Information : Luminance 400 cd/m² (Typ.) Contrast Ratio 900 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 3/15 (Typ.)(Tr/Td) (ms)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 38% sRGB 54% coverage
Adobe RGB 40% coverage DCI-P3 40% coverage
Rec.2020 29% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

NEC NL10276BC20-18D Mechanical Details

Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0685×0.2055 mm Pixel Pitch(W×H) 0.2055×0.2055 mm [123PPI]
Physical Size : Active Viewing 210.4(W)×157.8(H) mm Overall Dim. 228(W)×178.5(H) mm
Bezel Opening 215.4(W)×161.8(H) mm Overall Depth 8.7±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Side mounting holes (4-M2) on left, right bezel
Other Detail : Mass 380/400g (Typ./Max.) Surface Antiglare, Hard coating (3H)


NEC NL10276BC20-18D Interface Details

Signal Electrical : Input Current 450/780mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption - Signal Interface LVDS (1 ch, 6/8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE FI-SE20P-HFE 1 pcs 1.25 mm 20 pins LVDS-20P1C8B-170A

NEC NL10276BC20-18D Lightting Details

Lamp Features: Lamp Shape 2 strings Lamp Type WLED Position Edge light type (Top side)
Exchange Replaceable (104LHS55) Amount 2 strings Life 70K(Typ.) (Hours)
Lamp Electrical : Input Current 60/66mA (Typ./Max.) Input Voltage 24.3/27.8/31.4V (Min./Typ./Max.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST SM08B-SRSS-TB 1 pcs 1.0 mm 8 pins BLE-8PINS-ACACNNNN
Backlight Driver : No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
