NL6448BC33-70G NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

NL6448BC33-70G NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : NEC

Model Number : NL6448BC33-70G

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 500PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : NL6448BC33-70G

BRAND : NEC

SIZE : 10.4INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 450CD/M2

Lamp Type : CCFL

TEMPERATURE RANGE : Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

Viewing Angle : 0/80/80/80 (Typ.)(CR≥10)

Contact Now

NEC NL6448BC33-70G Application Details

Basic Detail : Manufacturer Model Name NL6448BC33-70G
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 10.4 inch Designed For
Maximum Ratings : OP Temperature -30 ~ 80 °C ST Temperature -30 ~ 80 °C
Vibration Level 2.0G (19.6 m/s²)

NEC NL6448BC33-70G Optical Details

Basic Information : Luminance 450 cd/m² (Typ.) Contrast Ratio 900 : 1 (Typ.) (Transmissive)
Good View at - Response Speed 3/15 (Typ.)(Tr/Td) (ms)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K (6-bit)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)

NEC NL6448BC33-70G Mechanical Details

Pixel Features : Number of Pixel 640(RGB)×480 [VGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size : Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 243(W)×185.1(H) mm
Bezel Opening 215.4(W)×161.8(H) mm Overall Depth 10.5±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail : Mass 475/500g (Typ./Max.) Surface Clear, Hard coating (3H)

NEC NL6448BC33-70G Electronics Details

Refresh Rate : 60Hz
Reverse Scan : Yes (180°)
Power Consumption : 3.7W (Typ.)

NEC NL6448BC33-70G Interface Details

Signal Electrical : Input Current 300/200mA (Typ.) Input Voltage 3.3/5.0V (Typ.)
Consumption - Signal Interface CMOS (1 ch, 6-bit)
Logic Voltage for Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
HRS DF9C-31P-1V 1 pcs 1.0 mm 31 pins DRGB-31P1C6B-010F

NEC NL6448BC33-70G Lightting Details

Lamp Features: Lamp Shape 3 strings Lamp Type WLED Position Edge light type (Top side)
Exchange Replaceable (104LHS56) Amount 3 strings Life 70K(Typ.) (Hours)
Lamp Electrical : Input Current 50/55mA (Typ./Max.) Input Voltage 15.9/18.0/20.4V (Min./Typ./Max.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST SM08B-SRSS-TB 1 pcs 1.0 mm 8 pins BLE-8PINS-ACACACNN
Backlight Driver : No

NL6448BC33-70G NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY


Product Tags:

LVDS NEC TFT Display



VGA 76PPI TFT LCD Panel


Wholesale NL6448BC33-70G NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY from china suppliers

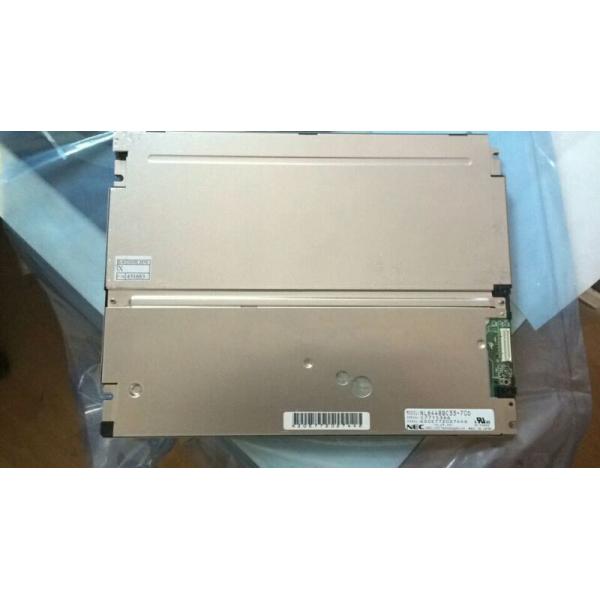

NL6448BC33-70G NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY Images
