NEC NL6448BC33-64 Overview

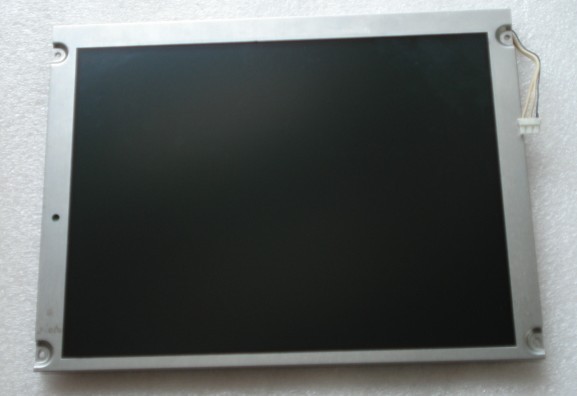

NL6448BC33-64 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).
NEC NL6448BC33-64 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| | NL6448BC33-64 | a-Si TFT-LCD , LCM | - |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Used For : | |
NEC NL6448BC33-64 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 450 (Typ.) | 80/80/80/60 (Typ.)(CR≥10) | 6/19 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| 6 o'clock | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 41% | 57% | 43% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 43% | 31% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
NEC NL6448BC33-64 Mechanical Features
| Panel Size : | 10.4" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.330×0.330 [76PPI] | 0.110×0.330 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 215.4(H) × 161.8(V) | 243(H) × 185.1(V) | 10.5±0.5 mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | |
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Other Detail : | Weight | Panel Cover | Treatment |
| 475/500g (Typ./Max.) | - | Clear, Hard coating (3H) |
NEC NL6448BC33-64 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| CCFL | Edge light type (Top side) | 2 pcs | Straight | 50K(Typ.) | Replaceable (104LHS46) |
| CCFL Electrical : | Voltage Supply | Current Supply | Power |
| 520V (Typ.) | 2.0/5.0/5.5mA (Min./Typ./Max.) | |
| Operating Frequency | Kick-off Voltage |
| 50/72Khz (Min./Max.) | 850/1150V (Min.)(Ta=+25/-20℃) |
| Interface Features : | Position | Backlight Driver | Type |
| - | No | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL |
NEC NL6448BC33-64 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 3.3/5.0V (Typ.) | 300/200mA (Typ.) | - |
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Interface Features : | Position | Signal | Type |
| - | CMOS (1 ch, 6-bit) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9C-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010F |
