NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

Brand Name : NEC

Model Number : NL12880BC20-05D

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 600PCS

Delivery Time : 2-3 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : NL12880BC20-05D

BRAND : NEC

SIZE : 12.1INCH

RESOLUTION : 1280×800RGB

BRIGHTNESS : 450CD/M2

Lamp Type : LVDS

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

NEC NL12880BC20-05D Application Details

Basic Detail :	Manufacturer Model Name NL12880BC20-05D Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 12.1 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS Vibration Level 2.0G (19.6 m/s²)
Features :
Remarks :	ColorXcell

NEC NL12880BC20-05D Optical Details

Basic Detail :	Luminance 450 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 10/15 (Typ.)(Tr/Td) ms Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Operating Mode UA-SFT, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6485K White Variation 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamut :	NTSC Ratio 40% sRGB 56% coverage Adobe RGB 42% coverage DCI-P3 41% coverage Rec.2020 30% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

NEC NL12880BC20-05D Mechanical Details

Pixel Features :	Number of Pixel 1280(RGB)×800, WXGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.068×0.204 mm Pixel Pitch(W×H) 0.204×0.204 mm [124PPI]
Physical Size :	Active Viewing 261.12(W)×163.2(H) mm Overall Dim. 277.7(W)×180.6(H) mm Bezel Opening 264.1(W)×166.2(H) mm Overall Depth 8.7±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:10 Shape Style
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Detail :	Mass 460/490g (Typ./Max.) Surface Antiglare, Hard coating (3H)

NEC NL12880BC20-05D Interface Detail

Signal Electrical :	Input Current 500/860mA (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption - Signal Interface LVDS (1 ch, 6/8-bit)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JAE FI-SE20P-HFE 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-170A

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

Product Tags:

NEC TFT Display 40% NTSC

XGA 85PPI NEC TFT Display

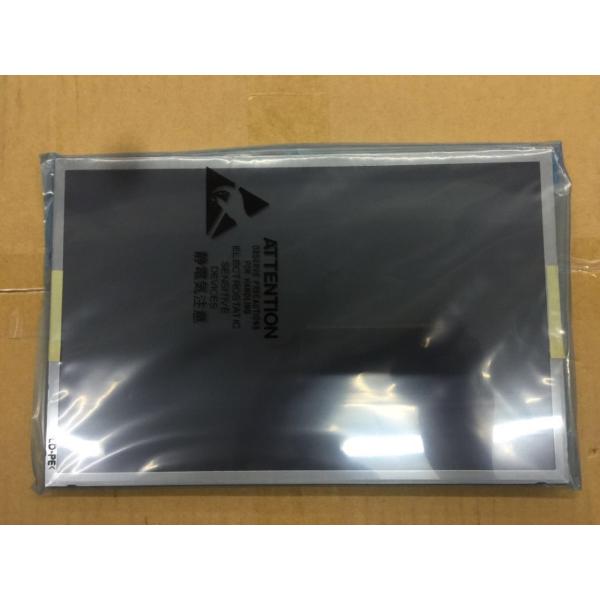

NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS Images
