SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Brand Name : KOE

Model Number : SP10Q010-TZA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 3DAYS

Packaging Details : STANDARD PACKING

Price : 50USD

MODEL NUMBER : SP10Q010-TZA

BRAND : KOE

SIZE : 3.8 inch

RESOLUTION : 320×240 [QVGA] 105PPI

BRIGHTNESS : 50 cd/m² (Typ.)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C

SIGNAL LNTERFACE : LVDS

Lamp Type : WLED

Contact Now

KOE SP10Q010-TZA Application Features

Basic Information : Brand Model Type Model Alias
SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY SP10Q010-TZA FSTN-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY -20 ~ 70 °C -30 ~ 80 °C -
Designed For :
  • SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
Specific Features :

KOE SP10Q010-TZA Mechanical Features

Panel Size : 3.8 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
320×240, QVGA Rectangle 0.240×0.240 mm 0.240×0.240 mm [105PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
76.79×57.59 mm - 94.7×73.3 mm 6.5±0.5 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Touchscreen : Touch Points TP Controller Signal Type Touch Tech
- - - 4-wire Resistive Touch
Other Features : Panel Cover Weight Surface
- - Antiglare, Hard coating (2H)

KOE SP10Q010-TZA Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
50 cd/m² (Typ.) STN, Black/White (Positive), Transflective 4:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
80 (Typ.)(CR≥2, Φ2-Φ1) 6 o'clock 150/350 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
- Monochrome -
Performance : 3D Type Outdoor Visibility Reflectance
- Sunlight Readable -

KOE SP10Q010-TZA Electronics Features

Frame Rate : 75Hz SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
Reverse Scan : No
Driving Method : Duty: 1/242 , Bias: 1/13

KOE SP10Q010-TZA Interface Features

Signal Electrical : Current Input Voltage Input Consumption
2.38mA (Typ.) 3.3V (Typ.) -
Interface Features : Position Type Interface
- FPC Parallel Data (4-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
1 pcs 0.5 mm 20 pins

KOE SP10Q010-TZA Backlight Features

Backlight Features: Type Position Shape Amount SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY Life(Hours) Replacement
WLED Edge light type Parallel 1S6P - -
WLED Electrical : Current Input Voltage Input Consumption SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
110/120mA (Typ./Max.) 5.0/5.2V (Typ./Max.)
Interface Features : Position Type WLED Driver
- Included in panel signal interface No


Product Tags:

TFT LCD Display SVGA 119PPI



LVDS TFT LCD Module


Wholesale SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY from china suppliers

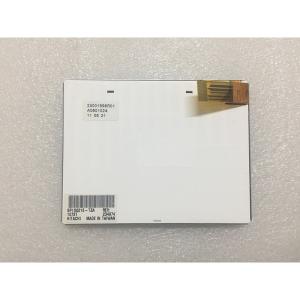

SP10Q010-TZA KOE 3.8" inch 320×240 50 cd/m² Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY Images
