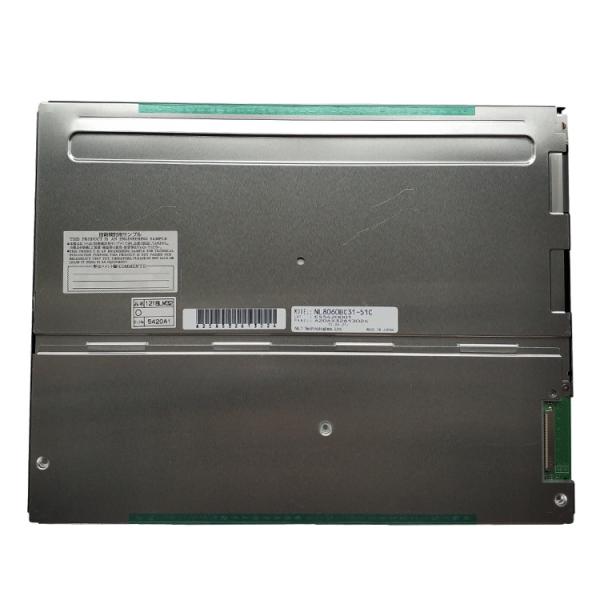

NEC NL8060BC31-51C Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| | NL8060BC31-51C | a-Si TFT-LCD , LCM | - |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | -30 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
NEC NL8060BC31-51C Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 900 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 3/15 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| - | TN, Normally White, Transmissive | 1000 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 40% | 56% | 42% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 42% | 30% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | - |
NEC NL8060BC31-51C Mechanical Features
| Panel Size : | 12.1" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.3075×0.3075 [82PPI] | 0.1025×0.3075 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 246(H) × 184.5(V) | 249.0(H) × 187.5(V) | 260.5(H) × 203(V) | 8.7±0.5 mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Detail : | Weight | Panel Cover | Treatment |
| 490/540g (Typ./Max.) | - | Clear, Hard coating (2H), Antireflection |
NEC NL8060BC31-51C Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| WLED | Edge light type (Top side) | 5 strings | 5 strings | 70K(Typ.) | Replaceable (121LHS32) |
| WLED Electrical : | Voltage Supply | Current Supply | Power |
| 21.2/24.0/27.2V (Min./Typ./Max.) | 50/55mA (Typ./Max.) | |
| Interface Features : | Position | Backlight Driver | Type |
| - | No | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM10B-SRSS-TB | 1.0 mm | 10 pins | 1 pcs | BLE-10PINS-ACACACACAC |
NEC NL8060BC31-51C Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 3.3V (Typ.) | 300/460mA (Typ./Max.) | - |
| Interface Features : | Position | Signal | Type |
| - | LVDS (1 ch, 6/8-bit) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-170A |
