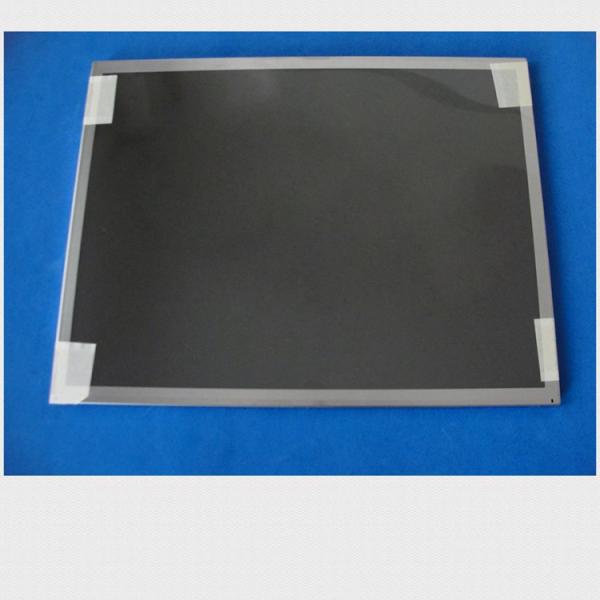

AUO G150XG01 V2 Application Details
| Basic Information : | Brand | | Model | G150XG01 V2 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 15.0" | Alias | G150XG01 V.2 |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | | Vibration | 1.5G (14.7 m/s²) |
AUO G150XG01 V2 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.4(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 12.0 (Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.10Kgs (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G150XG01 V2 Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock | Response(ms) | 5.7/2.3 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 67% | sRGB | 88% coverage |
| Adobe RGB | 68% coverage | DCI-P3 | 69% coverage |
| Rec.2020 | 50% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XG01 V2 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 8.8W (Typ.) |
AUO G150XG01 V2 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 550/600mA (Typ./Max.) |
| Consumption | 1.9/2.2W (Typ./Max.) |
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSB240420E | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-060D |
AUO G150XG01 V2 Backlight Details
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type (Top and Bottom) |
| Replacement | Replaceable | Quantity | 9S3P | Life Time | 50K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 28.8/32.85V (Typ./Max.) | Current Supply | 80/84mA (Typ./Max.) |
| Consumption | 6.9W (Typ.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM06B-SRSS-TB(LF)(SN) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-AAACCC |
| Backlight Driver : | No |
