AUO G150XG01 V1 Application Details
| Basic Detail : | Manufacturer Model Name G150XG01 V1 Panel Type a-Si TFT-LCD , LCM Another Name G150XG01 V.1 Panel Size Designed For |
| Maximum Ratings : | OP Temperature -30 ~ 85 °C ST Temperature -30 ~ 85 °C RoHS Vibration Level 1.5G (14.7 m/s²) |
| Features : | |
AUO G150XG01 V1 Optical Details
| Basic Detail : | Luminance 350 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive) Good View at 12 o'clock Response Speed 5.7/2.3 (Typ.)(Tr/Td) ms Viewing Angle 80/80/70/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.2M (6-bit / 6-bit + FRC) Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio 64% sRGB 87% coverage Adobe RGB 66% coverage DCI-P3 66% coverage Rec.2020 47% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XG01 V1 Mechanical Details
| Pixel Features : | Number of Pixel 1024(RGB)×768, XGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm [85PPI] |
| Physical Size : | Active Viewing 304.128(W)×228.096(H) mm Overall Dim. 326.5(W)×253.5(H) mm Bezel Opening 307.4(W)×231.3(H) mm Overall Depth 12.0 (Max.) mm |
| Outline Features : | Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass 1.10Kgs (Typ.) Surface Antiglare, Hard coating (3H) |
AUO G150XG01 V1 Interface Detail
| Signal Electrical : | Input Current 550/660mA (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption 1.9/2.2W (Typ./Max.) Signal Interface LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position - Type Connector |
| Interface Detail : | Brand Model Pitch Pins Amount Pin Assignment STM 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-060D |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

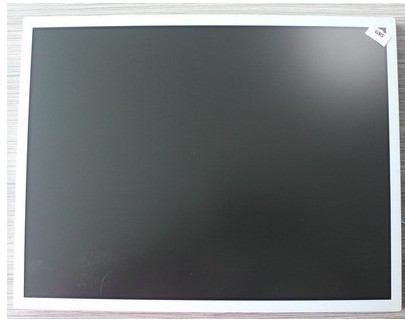

G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY Images
|
