AUO G150XAN03.0 Summary
G150XAN03.0 is a
15.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called
AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²).
AUO G150XAN03.0 Application Details
| Basic Information : | Brand | | Model | G150XAN03.0 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 15.0" | Alias | - |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | | Vibration | - |
AUO G150XAN03.0 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Other Spec : | Weight | - | Treatment | Antiglare, Hard coating (3H) |
AUO G150XAN03.0 Optical Details
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | - |
AUO G150XAN03.0 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
AUO G150XAN03.0 Interface Details
| Signal Electrical : | Input Current | 0.43/0.52A (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 1.42/1.72W (Typ./Max.) | Signal Interface | eDP (1 Lane) |
| Interface Features : | Position | | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20765-030E-11A | 1 pcs | 0.5 mm | 30 pins | EDP-30P1L-030A |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

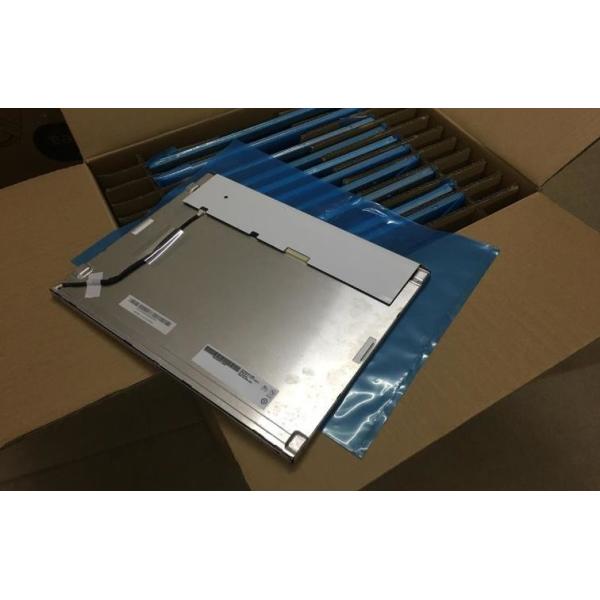

G150XAN03.0 AUO 15INCH 1024×768RGB 400CD/M2 WLED eDP Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY Images
|
