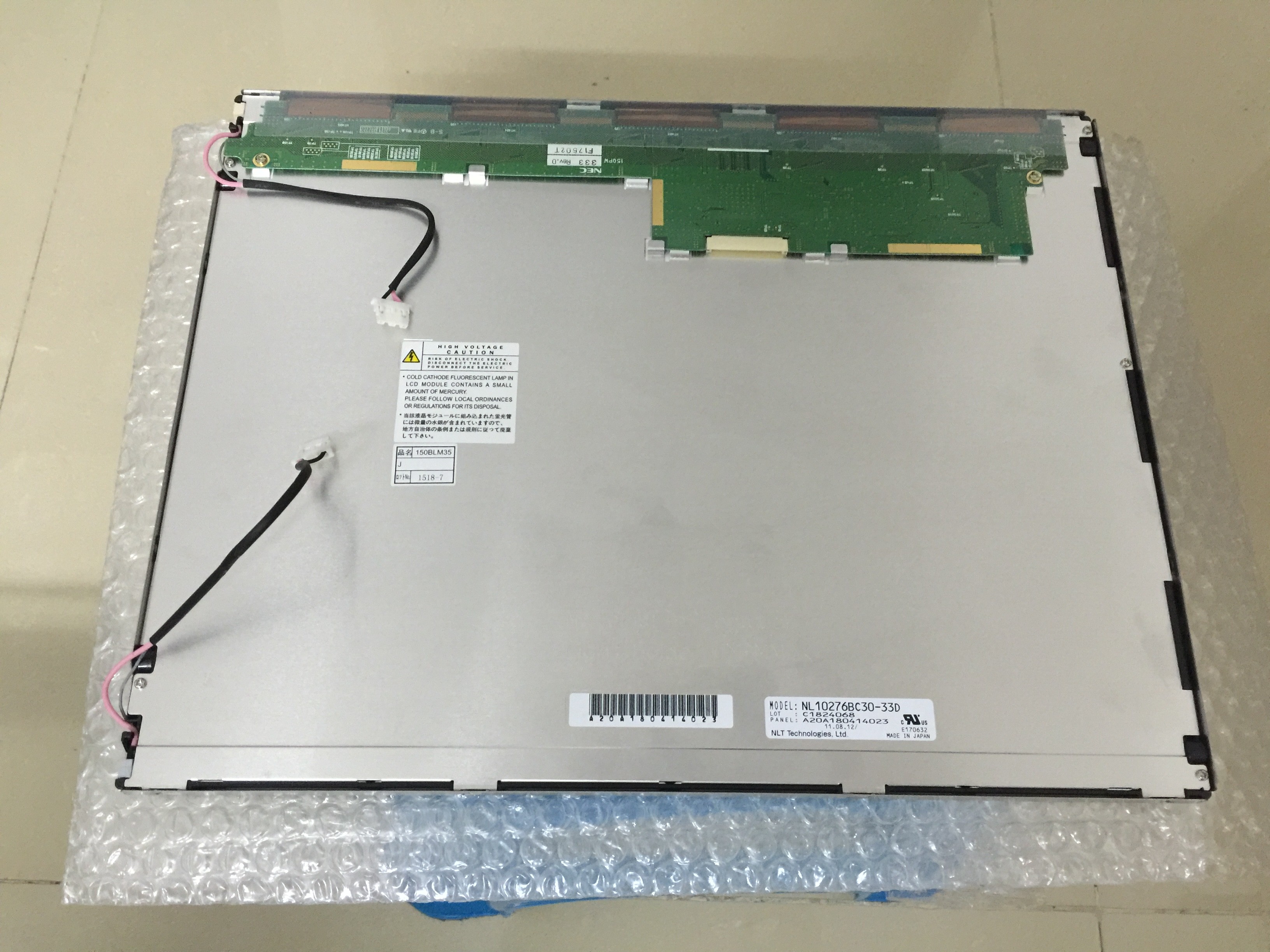

NEC NL10276BC30-33 Application Details
| Basic Information : | Brand Model NL10276BC30-33 Type a-Si TFT-LCD , LCM Used For Screen Size Alias - |
| Environment : | Storage Temp. -20 ~ 80 °C Operating Temp. 0 ~ 70 °C RoHS Vibration 1.2G (11.76 m/s²) |
| Typical Features : | |
NEC NL10276BC30-33 Mechanical Details
| Pixel Features : | Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI] |
| Mechanical Size : | Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) 307.4(H) × 231.3(V) Outline Dim.(mm) 326.5(H) × 253.5(V) Depth(mm) 11.5±0.5 |
| Outline Features : | Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight 0.97/1.05Kgs (Typ./Max.) Treatment Antiglare, Hard coating (3H) |
NEC NL10276BC30-33 Optical Details
| Basic Information : | Luminance(cd/m²) 350 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 4/14 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.7M (6-bit + Hi-FRC) Color Temperature 6485K White Uniformity 1.10/1.30 (Typ./Max.)(5 points) |
NEC NL10276BC30-33 Interface Detail
| Signal Electrical : | Voltage Supply 3.3V (Typ.) Current Supply 800mA (Max.) |
| Signal Type : | LVDS (1 ch, 8-bit) Logic Voltage - |
| Interface Features : | Position - Type Connector |
| Interface Detail : | Brand Model Pitch Pins Quantity Pin Configuration HRS 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-010G |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|
NL10276BC30-33 NLT 15INCH 350CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: 0 ~ 70 °C INDUSTRIAL LCD DISPLAY Images
|
