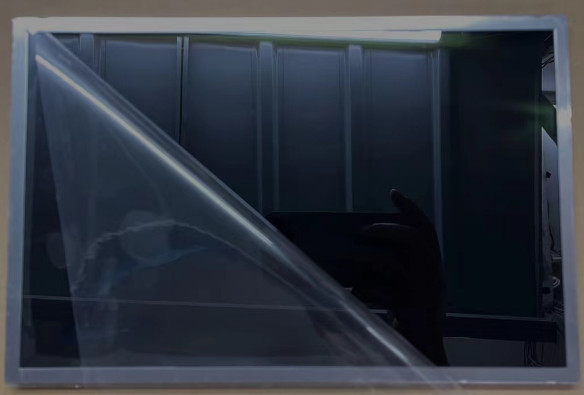

NLT NL10276AC30-53D Application Details
| Basic Information : | Brand | | Model | NL10276AC30-53D |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 15.0" | Alias | - |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | | Vibration | 1.2G (11.76 m/s²) |
NLT NL10276AC30-53D Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.4(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 6.3±0.5 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Spec : | Weight | 640/700g (Typ./Max) | Treatment | Antiglare, Hard coating (3H) |
NLT NL10276AC30-53D Optical Details
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 3/5 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 62% | sRGB | 84% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 65% coverage |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
NLT NL10276AC30-53D Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 400/780mA (Typ./Max.) |
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSCK2407P30 | 1 pcs | 30 pins | 1.0 mm |
NLT NL10276AC30-53D Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
| Replacement | Replaceable | Quantity | - | Life Time | - |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 600/680mA (Typ./Max.) |
