NEC NL10276AC28-01L Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
| | NL10276AC28-01L | a-Si TFT-LCD , LCM | - |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| | 0 ~ 50 °C | -20 ~ 60 °C | 2.0G (19.6 m/s²) |
NEC NL10276AC28-01L Mechanical Features
| Panel Size : | 14.1 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.093×0.279 mm | 0.279×0.279 mm [91PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 285.696×214.272 mm | 290.4×219.0 mm | 330×255 mm | 19.8/20.5 (Typ./Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | Normal bezel |
| Fixation : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | 1.23/1.35Kgs (Typ./Max.) | Antireflection |
NEC NL10276AC28-01L Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 150:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 50/50/20/35 (Typ.)(CR≥10) | - | 11 (Typ.)(Tr) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Full color | - |
NEC NL10276AC28-01L Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 630mA (Typ.) | 12.0V (Typ.) | - |
| Interface Features : | Position | Type | Interface |
| - | Connector | Analog RGB |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| AMP | 1-353119-4 | 1 pcs | 1.25 mm | 14 pins | |
| HRS | DF14A-25P-1.25H | 1 pcs | 1.25 mm | 25 pins | |
| JAE | IL-Z-8PL-SMTY | 1 pcs | 1.25 mm | 8 pins |
NEC NL10276AC28-01L Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| CCFL | Edge light type (Top and Bottom) | Straight | 2 pcs | - | Replaceable (141LHS08) |
| Interface Features : | Position | Type | CCFL Driver |
| - | Connector | With Inverter |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | IL-Z-11PL1-SMTY | 1 pcs | 1.25 mm | 11 pins | |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| 0.70/0.90A (Typ./Max.) | 12.0V (Typ.) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

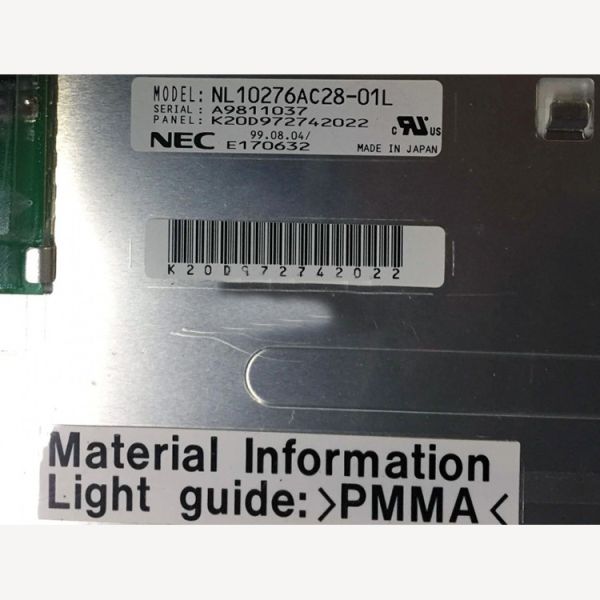

NL10276AC28-01L NLT 14.1INCH 200CD/M2 LCM 1024×768 1024×768RGB CCFL Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISP Images
|
