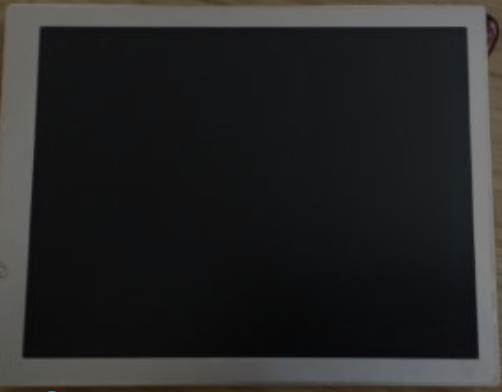

0.48W 122PPI 6.5 Inch 640×480 480cd/M2 square tft Panel TX17D01VM2CPA

Name: 048W 122PPI 65 Inch 640480 480cdM2 square tft Panel TX17D01VM2CPA
Brand: HITACHI
Price: 1 USD

Wholesale 0.48W 122PPI 6.5 Inch 640×480 480cd/M2 square tft Panel TX17D01VM2CPA from china suppliers

Brand Name : HITACHI

Model Number : TX17D01VM2CPA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 3 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TX17D01VM2CPA

BRAND : HITIACH

SIZE : 6.5 inch

RESOLUTION : 640(RGB)×480 (VGA) 122PPI

BRIGHTNESS : 480 cd/m² (Typ.)

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)

Contact Now

HITACHI TX17D01VM2CPA Overview

Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) TX17D01VM2CPA is a 6.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²)

HITACHI TX17D01VM2CPA Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		TX17D01VM2CPA	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-20 ~ 70 °C	-30 ~ 80 °C	2.0G (19.6 m/s²)
Used For :
Specific Features :

HITACHI TX17D01VM2CPA Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	480 (Typ.)	80/80/60/80 (Typ.)(CR≥10)	30 (Typ.)(Tr+Td)
	Best View on	Display Mode	Contrast Ratio
	6 o'clock	TN, Normally White, Transmissive	600 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	7525K	262K (6-bit)	X:0.300; Y:0.310
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	52%	49%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	43%	40%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.43 (Max.)(9 points)

HITACHI TX17D01VM2CPA Mechanical Features

Panel Size :	6.5"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	640(RGB)×480 [VGA]	RGB Vertical Stripe	0.207×0.207 [122PPI]	0.069×0.207
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	132.48(H) × 99.36(V)	135.9(H) × 102.8(V)	153(H) × 118(V)	10.2 (Typ.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Touch Screen :	Controller	Touch Points	Interface	TP Technology
Touch Screen :	-	-	-	4-wire Resistive Touch, F/G
Mounting :	Side mounting holes (4-M2)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	240g (Typ.)	-	Antiglare

HITACHI TX17D01VM2CPA Electronics Features

Reverse Scan :	Yes (180°)
Vertical Frequency :	60Hz
Power Consumption :	4.56W (Typ.)

HITACHI TX17D01VM2CPA Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	3S4P	4 strings	70K(Typ.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	SM02(8.0)B-BHS-1-TB(LF)(SN)	8.0 mm	2 pins	1 pcs	BDE-2PINS-VG
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	12.0±0.3V		340±20mA			4.08W (Typ.)

HITACHI TX17D01VM2CPA Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)(VDD)		144/172mA (Typ./Max.)			0.48W (Typ.)
Voltage for Display Signals :	VSS≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :	Position	Signal				Type
Interface Features :	-	CMOS (1 ch, 6-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	HRS	DF9-31P-1V	1.0 mm	31 pins	1 pcs	DRGB-31P1C6B-010M
