NEC NL4864HC13-01A Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
| | NL4864HC13-01A | a-Si TFT-LCD , LCM | - |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
NEC NL4864HC13-01A Mechanical Features
| Screen Size : | 4.2" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×640, VGA | RGB Vertical Stripe | 0.0455×0.1335 mm | 0.1335×0.1335 mm [190PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 64.08×85.44 mm | 66.5×87.8 mm | 76.5×99.7 mm | 3.8 (Typ.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 59.0/61.0g (Typ./Max.) | - | Clear, Hard coating (3H) |
NEC NL4864HC13-01A Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 280 cd/m² (Typ.) | TN, Normally White, Transflective | 200:1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) |
| Good View at | Viewing Angle | Response Time |
| 12 o'clock | 30/30/30/35 (Typ.)(CR≥10) | 7/23 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6066K | 262K (6-bit) | X:0.320; Y:0.340 |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 14% (Typ.) |
NEC NL4864HC13-01A Electronics Features
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
NEC NL4864HC13-01A Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type | 33K(Typ.) | - | 1 string | - |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
| 23.8/26.2V (Typ./Max.) | 14/15mA (Typ./Max.) | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| No | Included in panel signal interface | - |
NEC NL4864HC13-01A Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 3.3/10.0/20/-10V (Typ.)(VCC/VDD/VGH/VGL) | 4.5/13.0/0.15/0.15mA (Typ.)(ICC/IDD/IGH/IGL) | 150mW (Typ.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| RSDS (1 Channel) | Connector | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | AA03-P050VA2 | 1 pcs | 50 pins | 0.4 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

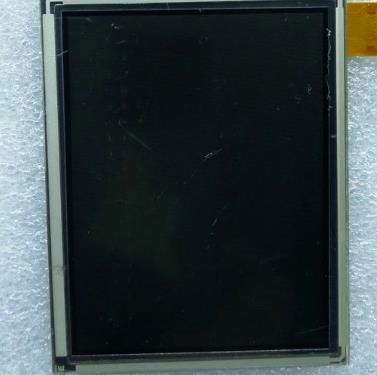

NLT 4.2" 480×640 WLED RSDS NEC TFT Display 280nits NL4864HC13-01A Images
|
