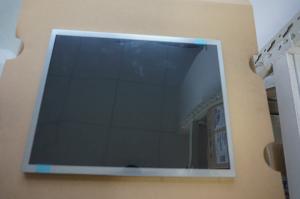

TX26D200VM2BAB KOE 10.4" 800(RGB)×600 1500 cd/m² Storage Temp.: -30 ~80 °C INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : KOE

Model Number : TX26D200VM2BAB

Certification : ISO9001

Place of Origin : JAPAN

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TX26D200VM2BAB

BRAND : KOE

SIZE : 10.4 inch

RESOLUTION : 800(RGB)×600 [SVGA] 96PPI

BRIGHTNESS : 1500CD/M2

TEMPERATURE RANGE : Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now

KOE TX26D200VM2BAB Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
TX26D200VM2BAB a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
-30 ~ 80 °C -30 ~ 80 °C 2.0G (19.6 m/s²)

KOE TX26D200VM2BAB Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
1500 (Typ.) 80/80/80/80 (Typ.)(CR≥10) 20 (Typ.)(Tr+Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 800 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
7639K 16.7M (8-bit) X:0.290; Y:0.340
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
53% 71% 56%
DCI-P3 Coverage Rec.2020 Coverage Remarks
55% 40% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.43 (Max.)(9 points)
Performance : 3D Tech Sunlight Visibility Reflectance
- Sunlight Readable

KOE TX26D200VM2BAB Mechanical Features

Panel Size : 10.4"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
800(RGB)×600 [SVGA] RGB Vertical Stripe 0.264×0.264 [96PPI] 0.088×0.264
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
211.2(H) × 158.4(V) 214.2(H) × 161.4(V) 230(H) × 180.2(V) 6.6/10.6 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Mounting : Rear mounting Pole (4-Φ3.0)
Other Detail : Weight Panel Cover Treatment
380g (Typ.)

KOE TX26D200VM2BAB Electronics Features

Reverse Scan : Yes (180°)
Vertical Frequency : 60Hz

KOE TX26D200VM2BAB Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 70K(Typ.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST SM02(8.0)B-BHS-1-TB 8.0 mm 2 pins 1 pcs BDE-2PINS-VG
Driver Electrical : Voltage Supply Current Supply Power Consumption
12.0±1.0V 540±50mA 6.48W (Typ.)

KOE TX26D200VM2BAB Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 350/483mA (Typ./Max.) 1.16W (Typ.)
Interface Features : Position Signal Type
- LVDS (1 ch, 8-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JAE FI-SEB20P-HF13E 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-005A

TX26D200VM2BAB KOE 10.4" 800(RGB)×600 1500 cd/m² Storage Temp.: -30 ~80 °C INDUSTRIAL LCD DISPLAY
