LS045W1LA01 Sharp 4.5" 1024×600RGB 200 cd/m² INDUSTRIAL LCD DISPLAY

Name: LS045W1LA01 Sharp 45quot 1024600RGB 200 cdm INDUSTRIAL LCD DISPLAY
Brand: SHARP
Price: 1 USD

Wholesale LS045W1LA01 Sharp 4.5" 1024×600RGB 200 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : SHARP

Model Number : LS045W1LA01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Model Name : LS045W1LA01

Manufacturer : Sharp

Size : 4.5 inch

Screen Type : LCM, CG-Silicon

Pixel Number : 1024(RGB)×600 (WSVGA)

Luminance : 200 cd/m² (Typ.)

Work Mode : Normally Black, Transmissive

Backlight : WLED

Contact Now

Sharp LS045W1LA01 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :	SHARP	LS045W1LA01	CG-Silicon , LCM	-
Application :

Sharp LS045W1LA01 Mechanical Features

Screen Size :	4.5"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1024(RGB)×600, WSVGA	RGB Vertical Stripe	-	-
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	-	Landscape type

Sharp LS045W1LA01 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	200 cd/m² (Typ.)	Normally Black, Transmissive	300:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	-	-	-
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	-	262K (6-bit)	-

LS045W1LA01 supports display 1024(RGB)×600 (WSVGA), whose pixels are arranged in RGB Vertical Stripe.. As a Normally Black, Transmissive LCM product, LS045W1LA01 can provides 200 cd/m² display brightness 300:1 transimissive contrast ratio . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.

LS045W1LA01 Sharp 4.5" 1024×600RGB 200 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

CCFL LVDS Industrial LCD Panel

QVGA Sharp TFT LCD Display

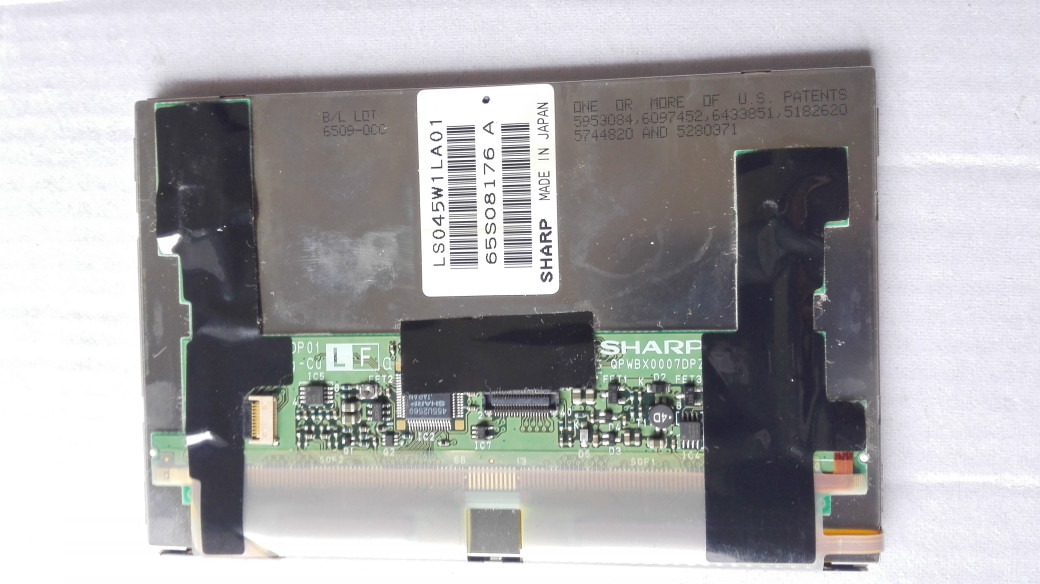

LS045W1LA01 Sharp 4.5" 1024×600RGB 200 cd/m² INDUSTRIAL LCD DISPLAY Images
