TM080SDH01 AVIC 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

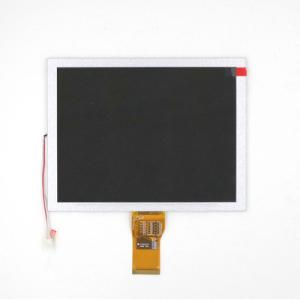

TM080SDH01 AVIC 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : AVIC

Model Number : TM080SDH01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 3000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM080SDH01

BRAND : AVIC

SIZE : 8.0 inch

RESOLUTION : 800(RGB)×600, SVGA, 125PPI

BRIGHTNESS : 250CD/M2

Viewing Angle : 70/70/50/70 (Typ.)(CR≥10)

Lamp Type : WLED

SIGNAL LNTERFACE : LVDS

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

AVIC TM080SDH01 Application Features

Basic Information : Brand Model 2 Compatible Type Model Alias
TM080SDH01 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
-20 ~ 70 °C -30 ~ 80 °C -
Designed For :
Specific Features :




Remarks : DE/SYNC mode selectable

AVIC TM080SDH01 Mechanical Features

Panel Size : 8.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
800(RGB)×600, SVGA RGB Vertical Stripe 0.0675×0.2025 mm 0.2025×0.2025 mm [125PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
162×121.5 mm 164.8×124.3 mm 183×141 mm 5.6±0.3 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Other Features : Panel Cover Weight Surface
- 250g Antiglare

AVIC TM080SDH01 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
250 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
70/70/50/70 (Typ.)(CR≥10) 12 o'clock 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
7369K 262K/16.7M (6-bit / 6-bit + Dithering) X:0.303; Y:0.307
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
50% 70% 52%
DCI-P3 Coverage Rec.2020 Coverage Remarks
52% 37% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.33/1.43 (Typ./Max.)(9 points)

AVIC TM080SDH01 Electronics Features

Power Consumption : 1.97/2.70W (Typ./Max.)
Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Time Controller (T-CON) : Embedded T-CON

AVIC TM080SDH01 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
3.39/17.75/0.28/0.29mA (Typ.)(ICC/AIDD/IGH/IGL) 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) 241.4/381.5mW (Typ./Max.)
Interface Features : Position Type Interface
- FPC Parallel RGB (1 ch, 6/8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
1 pcs 0.5 mm 50 pins DRGB-50P1C8B-105A

AVIC TM080SDH01 Backlight Features

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
WLED Edge light type Array 3S9P 20K(Typ.) -
WLED Electrical : Current Input Voltage Input Consumption
180/225mA (Typ./Max.) 9.6/10.3 (Typ./Max.) 1.73/2.32W (Typ./Max.)
Interface Features : Position Type WLED Driver
- Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
YEONHO 35001HS-02 1 pcs 3.5 mm 2 pins BLE-2PINS-AC

AVIC TM080SDH01 Packing Features

Package Carton : Amount Weight Carton Size
48 pcs / box 15.38±0.77 Kgs 544×365×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM080SDH01 AVIC 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAYTM080SDH01 AVIC 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY
