TM070DDH04 TIANMA 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM070DDH04 TIANMA 70quot 1024RGB600 400 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

Wholesale TM070DDH04 TIANMA 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : TIANMA

Model Number : TM070DDH04

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM070DDH04

BRAND : TIANMA

SIZE : 7.0"inch

RESOLUTION : 1024(RGB)×600, WSVGA, 169PPI

BRIGHTNESS : 400CDMA

Viewing Angle : 75/75/70/75 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

Contact Now

TIANMA TM070DDH04 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		TM070DDH04	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-20 ~ 60 °C	-30 ~ 70 °C	-
Used For :
Specific Features :

TIANMA TM070DDH04 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	400 (Typ.)	75/75/70/75 (Typ.)(CR≥10)	20 (Typ.)(Tr+Td)
	Best View on	Display Mode	Contrast Ratio
	12 o'clock	TN, Normally White, Transmissive	500 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6638K	16.7M (8-bit)	X:0.310; Y:0.330
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	51%	70%	53%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	53%	38%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33/1.43 (Typ./Max.)(9 points)

TIANMA TM070DDH04 Mechanical Features

Panel Size :	7.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1024(RGB)×600 [WSVGA]	RGB Vertical Stripe	0.150×0.150 [169PPI]	0.050×0.150
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	153.6(H) × 90(V)	-	165.75(H) × 105.39(V)	3.4±0.3 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	17:10 (H:V)
Mounting :	Without
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	129g (Typ.)	-	Antiglare

TIANMA TM070DDH04 Electronics Features

Reverse Scan :	Yes (U/D, L/R)
Vertical Frequency :	60Hz
Power Consumption :	2.0/2.65W (Typ./Max.

TIANMA TM070DDH04 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	3S9P	Array	20K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	9.0V (Typ.)		20/25mA (Typ./Max.)			1.62/2.23W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Included in panel signal interface

TIANMA TM070DDH04 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)		6/30/1/1mA (Typ.)(IDD/IAVDD/IGH/IGL)			376.6/432mW (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :	-	LVDS (1 ch, 8-bit)				FPC
FPC Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
FPC Detail :			0.5 mm	40 pins	1 pcs

TIANMA TM070DDH04 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	72 pcs / box	15.5±1.55 Kgs	544×365×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM070DDH04 TIANMA 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

XGA TIANMA LCD Screen

WQVGA TIANMA TFT LCD

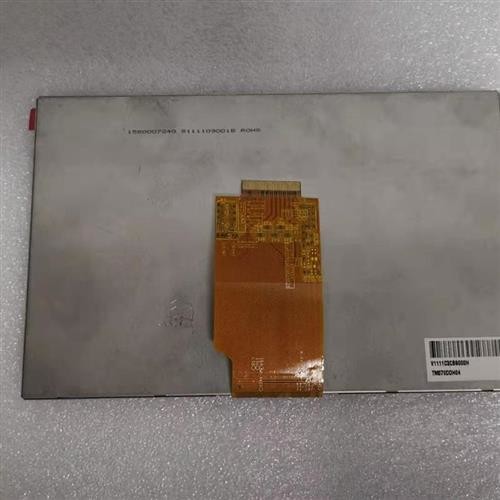

TM070DDH04 TIANMA 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY Images
