Sharp LQ070Y3DG01 Mechanical Details
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0635×0.1905 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1905×0.1905 (H×V) [133PPI] |
| Mechanical Size : | Active Area(mm) | 152.4(H) × 91.44(V) | Bezel Area(mm) | 157.2(H) × 96.35(V) |
| Outline Dim.(mm) | 175(H) × 111.5(V) | Depth(mm) | 13.5/13.8 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes (4-Φ2.2) |
| Other Spec : | Weight | 340g (Typ.) | Treatment | - |
Sharp LQ070Y3DG01 Optical Details
| Basic Information : | Luminance(cd/m²) | 380 (Typ.) | Contrast Ratio | 350:1 (Typ.) (Transmissive) |
| Viewing Angle | 60/60/50/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 10/15 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
Sharp LQ070Y3DG01 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 5.3W (Typ.) |
Sharp LQ070Y3DG01 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 300/450mA (Typ./Max.) |
| Consumption | 1.5W (Typ.) |
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | IL-FPR-32S-VF | 1 pcs | 32 pins | 0.5 mm |
Sharp LQ070Y3DG01 Backlight Details
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type |
| Replacement | - | Quantity | 1 pcs | Life Time | 15K(Typ.) (Hours) |
| Lamp Electrical : | Voltage Supply | 760±80V | Current Supply | 5.0±0.5mA |
| Frequency | 40/70KHz (Min./Max.) | Startup Voltage | 1640V (Max.)(Ta=0℃) |
| Consumption | 3.8W (Typ.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM02B-BHSS-1-TB | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL |
| Backlight Driver : | No |
LQ070Y3DG01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 175(W)×111.5(H)×13.8(D) mm, viewing area size of 157.2(W)×96.35(H) mm, net weight of 340g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ070Y3DG01 can provides 380 cd/m² display brightness 350:1 transimissive contrast ratio, 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed.
Product Tags:
|
|

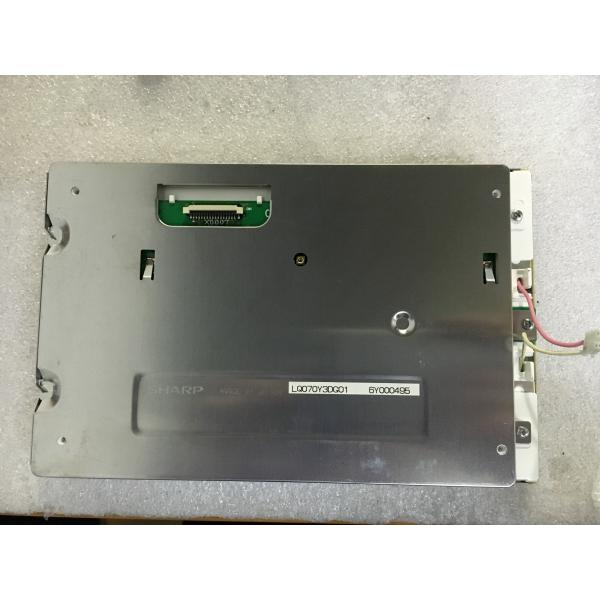

7" LCM 800×480RGB 380cd/m² LQ070Y3DG01 Sharp TFT LCD Display Images
|
