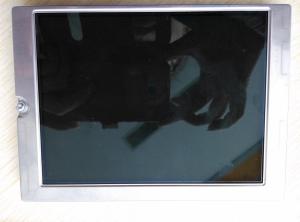

TCG057QV1AC-H50 Kyocera 5.7INCH LCM 320×240RGB 1000NITS CCFL TTL INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG057QV1AC-H50

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG057QV1AC-H50

SIZE : 5.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 1000 cd/m² (Typ.)

Signal Interface : Parallel RGB (1 ch, 6-bit) , 33 pins Connector

Lamp Type : 1 pcs CCFL , 75K hours , Optional

TEMPERATURE RANGE : Operating Temp.: -10 ~ 70 °C

Contact Now

Kyocera TCG057QV1AC-H50 Application Details

Basic Detail :
Manufacturer

TCG057QV1AC-H50Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
5.7 inch
Designed For
Maximum Ratings :
OP Temperature
-10 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level

Kyocera TCG057QV1AC-H50 Optical Details

Basic Detail :
Luminance
1000 cd/m² (Typ.)
Contrast Ratio
450:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
35 (Typ.)(Tr+Td) ms
Viewing Angle
70/70/60/60 (Typ.)(CR≥5)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.323; Wy:0.338
Support Color
262K (6-bit)
Color Temperature
5934K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
69% coverage
Adobe RGB
52% coverage
DCI-P3
52% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-

Kyocera TCG057QV1AC-H50 Mechanical Details

Pixel Features :
Number of Pixel
320(RGB)×240, QVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.120×0.360 mm
Pixel Pitch(W×H)
0.360×0.360 mm [70PPI]
Physical Size :
Active Viewing
115.2(W)×86.4(H) mm
Overall Dim.
144(W)×104.8(H) mm
Bezel Opening
119.8(W)×91.0(H) mm
Overall Depth
13.0±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style
Fixation :
Rear mounting holes (4-Φ2.6)
Other Detail :
Mass
220g
Surface
Glare (Haze 0%), Antireflection

Kyocera TCG057QV1AC-H50 Electronics Details

Refresh Rate :
75Hz
Reverse Scan :
Yes (U/D, L/R)

Kyocera TCG057QV1AC-H50 Interface Detail

Signal Electrical :
Input Current
130/160mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
429mW
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤5.5V
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
08-6210-033-340-800+
0.5 mm
33 pins
1 pcs

Kyocera TCG057QV1AC-H50 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
1 pcs
Position
Edge light type
Exchange
-
Lamp Shape
U shape
Lamp Life
75K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
655V (Typ.)
Input Current
3.0/5.0/6.0mA (Min./Typ./Max.)
Frequency
30/100KHz (Min./Max.)
Turn-on Voltage
1035/1550V (Max.)(Ta=+25/0°)
Consumption
3.275W
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL
Backlight Driver :
Optional

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TCG057QV1AC-H50 Kyocera 5.7INCH LCM 320×240RGB 1000NITS CCFL TTL INDUSTRIAL LCD DISPLAYTCG057QV1AC-H50 Kyocera 5.7INCH LCM 320×240RGB 1000NITS CCFL TTL INDUSTRIAL LCD DISPLAY
