Sharp LQ065T9DR51 Optical Details
| Basic Information : | Luminance | 220 cd/m² (Typ.) | Contrast Ratio | 60 : 1 (Min.) (Transmissive) 5:1 (Typ.) (Reflective) |
| Good View at | 6 o'clock | Response Speed | 10/25 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 50/50/40/45 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transflective |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Tech | - | Reflectance | 2.5/3.8% (Min./Typ.) |
Sharp LQ065T9DR51 Mechanical Details
| Pixel Features : | Number of Pixel | 400(RGB)×240 [WQVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.1195×0.3305 mm | Pixel Pitch(W×H) | 0.3585×0.3305 mm [72PPI] |
| Physical Size : | Active Viewing | 143.4(W)×79.326(H) mm | Overall Dim. | 155(W)×89.2(H) mm |
| Bezel Opening | - | Overall Depth | 12.5 (Typ.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | |
| Other Detail : | Mass | 205g (Max.) | Surface | Antiglare, Antireflection |
Sharp LQ065T9DR51 Interface Details
| Signal Electrical : | Input Current | 28/25/-22mA (Typ.)(ISH/IGH/IGL) | Input Voltage | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Logic Voltage for Signals : | VIL≤0.3VCC; 0.7VCC≤VIH |
| Interface Features : | Position | - | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9MA-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-090A |
Sharp LQ065T9DR51 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) |
| Lamp Electrical : | Input Current | 6.5±0.5mA | Input Voltage | 700±70V |
| Frequency | 35/100KHz (Min./Max.) | Turn-on Voltage | 3000/3000V (Max.)(Ta=+25/-30℃) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-04VS-1 | 1 pcs | 4.0 mm | 4 pins | BLL-4PINS-HNNL |
| Backlight Driver : | No |
LQ065T9DR51 supports display 400(RGB)×240 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 143.4(W)×79.326(H) mm, outline size of 155(W)×89.2(H) mm, with surface treament of Antiglare, Antireflection, net weight of 205g (Max.). As a TN, Normally White, Transflective LCM product, LQ065T9DR51 can provides 220 cd/m² display brightness 60:1 transimissive contrast ratio, 5:1 (Typ.) reflective contrast ratio, 50/50/40/45 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
Product Tags:
|
|

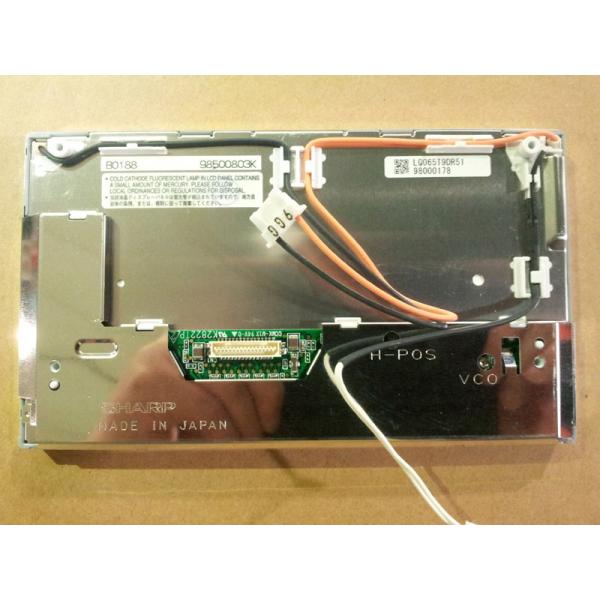

6.5" LCM 400×240RGB 220cd/m² LQ065T9DR51 Sharp TFT LCD Display Images
|
