TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

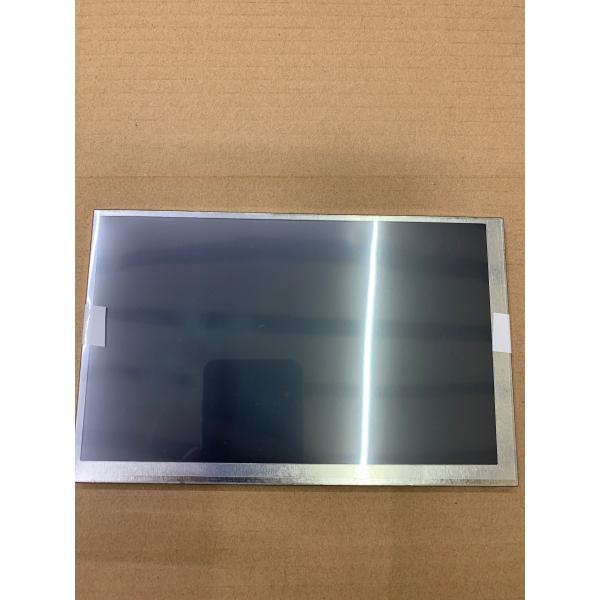

TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG070WVLPAANN-AN50

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : TCG070WVLPAANN-AN50

BRAND : Kyocera

SIZE : 7INCH

RESOLUTION : 800×480RGB

BRIGHTNESS : 700 cd/m² (Typ.)

Backlight : 2 strings WLED , 70K hours , No Driver

Signal Type : Parallel RGB (1 ch, 6-bit) , Connector 40 pins

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG070WVLPAANN-AN50 Application Details

Basic Detail :
Manufacturer

TCG070WVLPAANN-AN50Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
7.0 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level

Kyocera TCG070WVLPAANN-AN50 Optical Details

Basic Detail :
Luminance
700 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
5/25 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.290; Wy:0.305
Support Color
262K (6-bit)
Color Temperature
8405K
White Variation
1.43 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-

Kyocera TCG070WVLPAANN-AN50 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0635×0.1905 mm
Pixel Pitch(W×H)
0.1905×0.1905 mm [133PPI]
Physical Size :
Active Viewing
152.4(W)×91.44(H) mm
Overall Dim.
165(W)×104.4(H) mm
Bezel Opening
154.4(W)×93.4(H) mm
Overall Depth
8.2/8.5 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style
Fixation :
Without
Other Detail :
Mass
195g (Typ.)
Surface
Antiglare

Kyocera TCG070WVLPAANN-AN50 Electronics Details

Reverse Scan :
Yes (180°)
Time Controller (T-CON) :
Embedded T-CON

Kyocera TCG070WVLPAANN-AN50 Interface Detail

Signal Electrical :
Input Current
180/235mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.594W (Typ.)
Signal Interface
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
IRISO
IMSA-9681S-40A-GF
0.5 mm
40 pins
1 pcs

Kyocera TCG070WVLPAANN-AN50 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
2 strings
Position
Edge light type
Exchange
-
Lamp Shape
2 strings
Lamp Life
70K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
18.0/21.2V (Typ./Max.)
Input Current
60mA (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
