LQ065 Series LQ065T5AR06 LQ065T5AR05
Sharp LQ065T5AR05 Mechanical Details
| Pixel Features : | Resolution | 400(RGB)×234 | Dot Pitch(mm) | 0.1195×0.339 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3585×0.339 (H×V) [71PPI] |
| Mechanical Size : | Active Area(mm) | 143.4(H) × 79.326(V) | Bezel Area(mm) | 145.65(H) × 80.95(V) |
| Outline Dim.(mm) | 155(H) × 89.2(V) | Depth(mm) | 16.0 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes |
| Other Spec : | Weight | 240g | Treatment | Antiglare, Antireflection |
Sharp LQ065T5AR05 Optical Details
| Basic Information : | Luminance(cd/m²) | 420 (Typ.) | Contrast Ratio | 100:1 (Typ.) (Transmissive) |
| Viewing Angle | 50/50/35/55 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(CR≥10) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | Full color |
| Color Temperature | 6485K | White Uniformity | - |
Sharp LQ065T5AR05 Interface Details
| Signal Electrical : | Voltage Supply | 12.0V (Typ.)(VIN) | Current Supply | 700/900mA (Typ./Max.) |
| Consumption | 8.4/10.8W (Typ./Max.) |
| Signal Type : | Analog | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| Kyocera Elco | 00-6200-530-480-111 | 1 pcs | 30 pins | 1.0 mm |
Sharp LQ065T5AR05 Backlight Details
| Backlight Features: | Shape | U shape | Type | CCFL | Position | Edge light type |
| Replacement | - | Quantity | 1 pcs | Life Time | 10K(Min.) (Hours) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With Inverter |
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | - |
LQ065T5AR05 supports display 400(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 143.4(W)×79.326(H) mm, outline size of 155(W)×89.2(H) mm, viewing area size of 145.65(W)×80.95(H) mm, with surface treament of Antiglare, Antireflection, net weight of 240g. As a TN, Normally White, Transmissive LCM product, LQ065T5AR05 can provides 420 cd/m² display brightness 100:1 transimissive contrast ratio, 50/50/35/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(CR≥10) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With Inverter.
Product Tags:
|
|

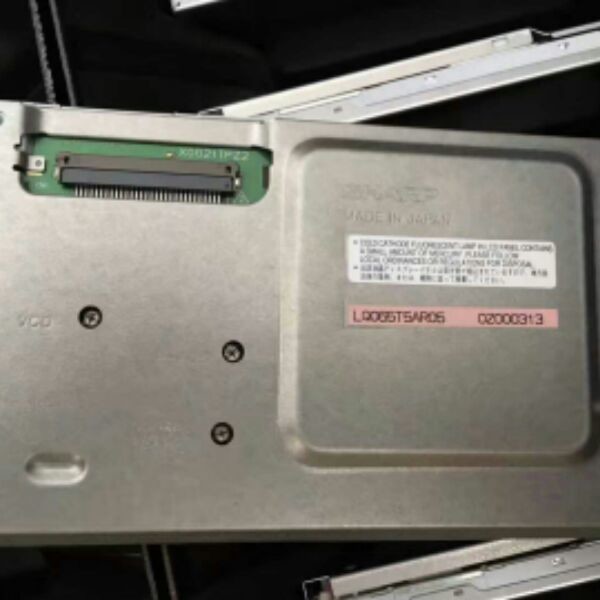

LQ065T5AR05 Sharp 6.5" LCM 400×234RGB 420cd/m² INDUSTRIAL LCD DISPLAY Images
|
