21.5" 1920×1080 200cd/m2 Square Tft Display 102PPI M215HGE-L31

Brand Name : INNOLUX

Model Number : M215HGE-L31

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : M215HGE-L31

BRAND : INNOLUX

SIZE : 21.5 inch

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 102PPI

VIEWING ANGLEG : 85/85/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

Chimei Innolux M215HGE-L31 Application Details

Basic Detail : Manufacturer Model Name M215HGE-L31
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 21.5 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

Chimei Innolux M215HGE-L31 Optical Details

Basic Information : Luminance 250 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 3.5/1.5 (Typ.)(Tr/Td) (ms)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 73% sRGB 93% coverage
Adobe RGB 72% coverage DCI-P3 76% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux M215HGE-L31 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.08275×0.24825 mm Pixel Pitch(W×H) 0.24825×0.24825 mm [102PPI]
Physical Size : Active Viewing 476.64(W)×268.11(H) mm Overall Dim. 495.6(W)×292.2(H) mm
Bezel Opening 479.8(W)×271.3(H) mm Overall Depth 8.3/11.5 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style Normal bezel
Fixation : Side mounting holes (4-M3) on up, down bezel
Other Detail : Mass 1.72±0.17Kgs Surface Antiglare (Haze 25%), Hard coating (3H)

Chimei Innolux M215HGE-L31 Interface Details

Signal Electrical : Input Current 0.41/0.50A (Typ./Max.) Input Voltage 5.0V (Typ.)
Consumption 4.66/5.76W (Typ./Max.) Signal Interface LVDS (2 ch, 8-bit)
Interface Features : Position Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
FOXCONN GS23302-0311R-7H 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160A

Chimei Innolux M215HGE-L31 Lightting Details

Lamp Features: Lamp Shape 4 strings Lamp Type WLED Position Edge light type (Right side)
Exchange - Amount 4 strings Life 40K(Min.) (Hours)
Lamp Electrical : Input Current 50±2.5mA Input Voltage 29.3/36/38.4V (Min./Typ./Max.)
Consumption 7.2/7.68W (Typ./Max.)
Interface Features : Position Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
CviLux CI1406M1HRF-NH 1 pcs 1.0 mm 6 pins BLE-6PINS-CCAACC
Backlight Driver : No

Chimei Innolux M215HGE-L31 Packing Details

Package Box : Amount Size (L×W×H) Weight
13 pcs / box 567×301×376 mm 27.525 Kgs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

21.5" 1920×1080 200cd/m2 Square Tft Display 102PPI M215HGE-L31


Product Tags:

21.5" 1920×1080 Square Tft Display



200cd/m2 Square Tft Display



102PPI LCM Tft Lcd Screen


Wholesale 21.5" 1920×1080 200cd/m2 Square Tft Display 102PPI M215HGE-L31 from china suppliers

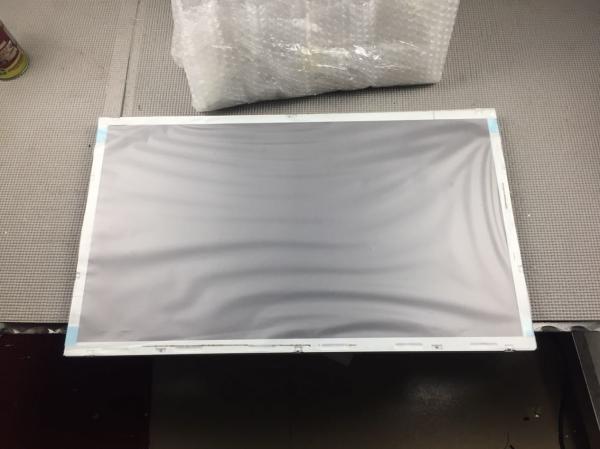

21.5" 1920×1080 200cd/m2 Square Tft Display 102PPI M215HGE-L31 Images
