15.6" LCM 3840×2160RGB LQ156D1JX06 Sharp TFT LCD Display

  • 1
  • 2
  • 3

Brand Name : SHARP

Model Number : LQ156D1JX06

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Panel Brand : Sharp

Panel Model : LQ156D1JX06

Pixel Format : RGB Vertical Stripe

Panel Size : 15.6"

Resolution : 3840(RGB)×2160, UHD, 282PPI

Lamp Type : WLED

Signal Interface : eDP

Environment : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

LQ156 Series LQ156D1JX36x LQ156D1JX36 LQ156D1JX06

Sharp LQ156D1JX06 Application Details

Basic Information :
Brand
SHARP
LQ156D1JX06Model
Type
Oxide TFT-LCD , LCM
Used For

15.6 inchScreen Size
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

-Vibration

Sharp LQ156D1JX06 Mechanical Details

Pixel Features :
Resolution
3840(RGB)×2160, UHD
Dot Pitch(mm)
0.030×0.090 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.090×0.090 (H×V) [282PPI]
Mechanical Size :
Active Area(mm)
345.6(H) × 194.4(V)
Bezel Area(mm)
-
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type

Sharp LQ156D1JX06 Optical Details

Basic Information :
Luminance(cd/m²)
-
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
-
Display Colors
16.7M (8-bit)

LQ156D1JX06 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 282 PPI. As for mechanical detail, it features active area of 345.6(W)×194.4(H) mm. As a IPS, Normally Black, Transmissive LCM product, LQ156D1JX06 can provides 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC).

15.6" LCM 3840×2160RGB LQ156D1JX06 Sharp TFT LCD Display


Product Tags:

XGA Industrial LCD Panel



SVGA Sharp TFT LCD Screen


Wholesale 15.6" LCM 3840×2160RGB LQ156D1JX06 Sharp TFT LCD Display from china suppliers

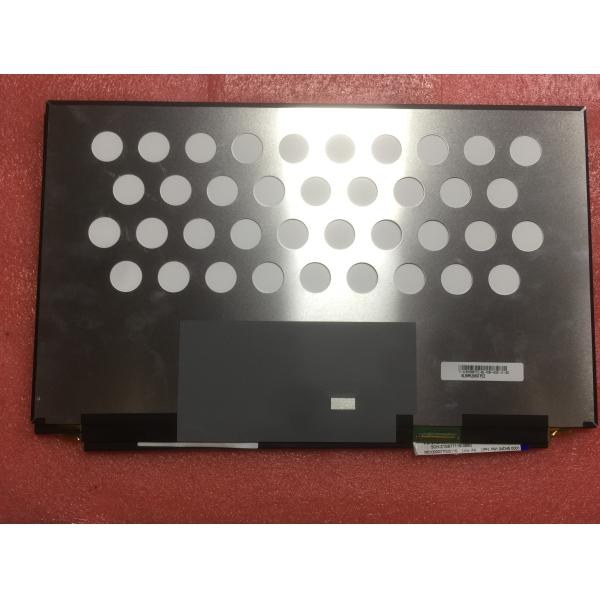

15.6" LCM 3840×2160RGB LQ156D1JX06 Sharp TFT LCD Display Images
