LQ156 Series LQ156T3LW03 LQ156T3LW02 LQ156M3LW01

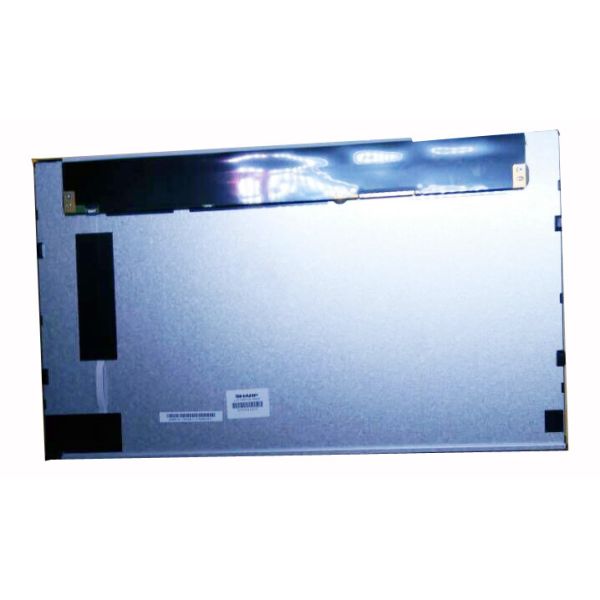

Sharp LQ156M3LW01 Mechanical Details
| Pixel Features : | Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.05975×0.17925 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.17925×0.17925 (H×V) [141PPI] |
| Mechanical Size : | Active Area(mm) 344.16(H) × 193.59(V) Bezel Area(mm) 347.54(H) × 196.83(V) Outline Dim.(mm) 363.8(H) × 215.9(V) Depth(mm) 10.8 (Typ.) |
| Outline Features : | Form Style Flat Rectangle Shape Style Aspect Ratio 16:9 (H:V) Orientation Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight 950g (Typ.) Treatment Antiglare, Hard coating |
Sharp LQ156M3LW01 Optical Details
| Basic Information : | Luminance(cd/m²) 400 (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode IPS, Normally Black, Transmissive Best View on Symmetry Response(ms) 35 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate Wx:0.292; Wy:0.307 Display Colors 16.7M (8-bit) Color Temperature 8188K White Uniformity 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio 75% sRGB 98% coverage Adobe RGB 78% coverage DCI-P3 78% coverage Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ156M3LW01 Interface Detail
| Signal Electrical : | Voltage Supply 5.0V (Typ.) Current Supply 0.39/1.0A (Typ./Max.) Consumption 1.95W (Typ.) |
| Signal Type : | LVDS (2 ch, 8-bit) Logic Voltage - |
| Interface Features : | Position
ConnectorType
|
| Interface Detail : | Brand Model Pitch Pins Quantity Pin Configuration JAE 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-200A |
Sharp LQ156M3LW01 Backlight Details
| Backlight Features : | Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 70K(Typ.) (Hours) |
| Interface Features : | Position
ConnectorType
|
| Interface Detail : | Brand Model Pitch Pins Quantity Pin Configuration JST 1.0 mm 10 pins 1 pcs |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply 12.0V (Typ.) Current Supply 0.45/1.0A (Typ./Max.) Consumption 5.4W (Typ.) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|
15.6" LCM 1920×1080RGB 400cd/m² LQ156M3LW01 Sharp TFT LCD Display Images
|
