TIANMA TS047NAARB02-00 Application Details
| Basic Info : | Panel Brand | | Panel Model | TS047NAARB02-00 |
| Diagonal Size | 4.7" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Reliability : | Operating Temp. | -20 ~ 60 °C | Storage Temp. | -40 ~ 75 °C |
TIANMA TS047NAARB02-00 Mechanical Details
| Pixel Features : | Pixel Format | 480(RGB)×272 [WQVGA] | Dot Pitch | 0.072×0.216 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.216×0.216 mm (H×V) [117PPI] |
| Mechanical Size : | Display Area | 103.68×58.752 mm (H×V) | Bezel Area | - |
| Outline Dim. | 114.24×72.88 mm (H×V) | Outline Depth | 4.4/5.3 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | |
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch |
| Other Features : | Weight | 72.0g (Typ.) | Surface | Antiglare, Hard coating (3H) |
TIANMA TS047NAARB02-00 Optical Details
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
| Viewing Angle | 65/65/50/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | 12 o'clock | Response Time | 30 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TS047NAARB02-00 Electronics Details
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
TIANMA TS047NAARB02-00 Backlight Details
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | - |
| Replacement | - | Amount | 5S1P+6S1P | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 3.2V (Typ.) | Current Input | 20mA (Typ.) |
| Consumption | 704mW (Typ.) |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
TIANMA TS047NAARB02-00 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) + SPI | Logic Voltage | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD |
| Signal Electrical : | Voltage Input | 3.3V (Typ.)(VDD) | Current Input | - |
| Consumption | 85/90mW (Typ./Max.) |
| Interface Features : | Type | FPC | Position | - | |
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| | | | 45 pins | 1 pcs |

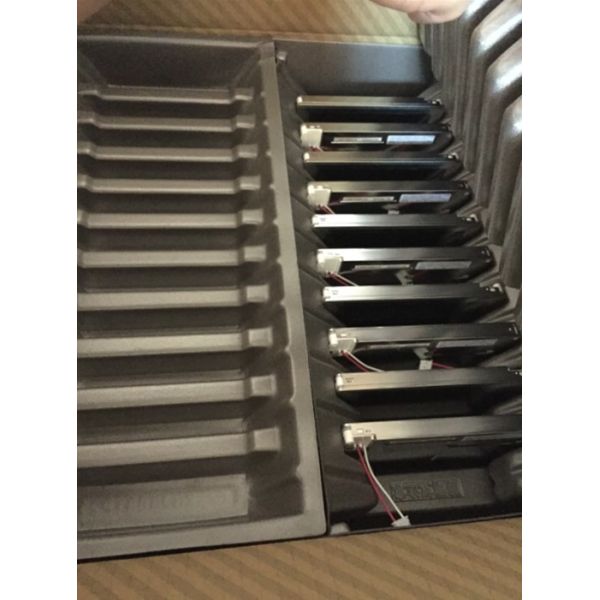

TIANMA TS047NAARB02-00 Carton Details
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| | 96 | 1 | 544×365×250 | 11.96 | 0.0496 |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 103.68(W)×58.752(H) mm, outline size of 114.24(W)×72.88(H)×5.3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 72.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TS047NAARB02-00 can provides 350 cd/m² display brightness 400:1 transimissive contrast ratio, 65/65/50/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC)
