15.6" LCM 1366×768RGB 400cd/m² LQ156T3LW02 Sharp TFT LCD Display

Name: 156quot LCM 1366768RGB 400cdm LQ156T3LW02 Sharp TFT LCD Display
Brand: SHARP
Price: 1 USD

Wholesale 15.6" LCM 1366×768RGB 400cd/m² LQ156T3LW02 Sharp TFT LCD Display from china suppliers

Brand Name : SHARP

Model Number : LQ156T3LW02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Panel Model : LQ156T3LW02

Panel Size : 15.6"

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Resolution : 1366(RGB)×768, WXGA, 100PPI

Outline Size : 363.8(W)×215.9(H) mm

Brightness : 400cd/m²

Signal Interface : LVDS (1 ch, 8-bit)

Lamp Type : WLED , With LED Driver

Touch Screen : Without

Outline Dim. : 363.8(H)×215.9(V) mm

Contact Now

LQ156 Series LQ156T3LW03 LQ156T3LW02 LQ156M3LW01

Sharp LQ156T3LW02 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :	SHARP	LQ156T3LW02	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-	-	-

Sharp LQ156T3LW02 Mechanical Features

Screen Size :	15.6"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1366(RGB)×768, WXGA	RGB Vertical Stripe	0.084×0.252 mm	0.252×0.252 mm [100PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	344.232×193.536 mm	-	363.8×215.9 mm	10.8 (Typ.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type

Sharp LQ156T3LW02 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	400 cd/m² (Typ.)	ASV, Normally Black, Transmissive	-
	Good View at	Viewing Angle	Response Time
	Symmetry	85/85/85/85 (Typ.)(CR≥10)	-
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	-	16.2M (6-bit + FRC)	-

LQ156T3LW02 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 363.8(W)×215.9(H) mm. As a ASV, Normally Black, Transmissive LCM product, LQ156T3LW02 can provides 400 cd/m² display brightness, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 76% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver.

15.6" LCM 1366×768RGB 400cd/m² LQ156T3LW02 Sharp TFT LCD Display

Product Tags:

XGA Industrial LCD Panel

SVGA Sharp TFT LCD Screen

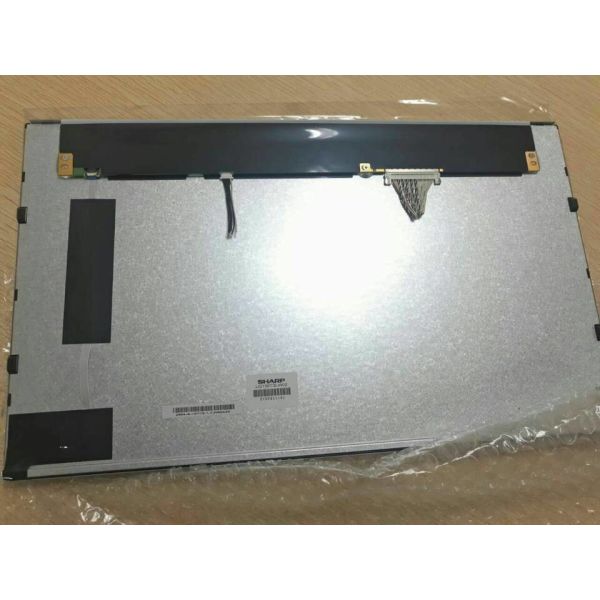

15.6" LCM 1366×768RGB 400cd/m² LQ156T3LW02 Sharp TFT LCD Display Images
