LQ150 Series LQ150X1LG98 LQ150X1LG96 LQ150X1LG94 LQ150X1LG93
Sharp LQ150X1LG93 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 30 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 80/80/65/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.325 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6974K | White Uniformity | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ150X1LG93 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326.5(W)×253.5(H) mm |
| Bezel Opening | 307.2(W)×231.1(H) mm | Overall Depth | 9.6±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass | 950g (Max.) | Surface | Antiglare, Hard coating (3H) |
Sharp LQ150X1LG93 Interface Details
| Signal Electrical : | Input Current | 300/400mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H(56) | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010G |
Sharp LQ150X1LG93 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
| Exchange | - | Amount | - | Life | 50K(Typ.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHLS-TF | 1 pcs | 1.0 mm | 6 pins | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 480/700mA (Typ./Max.) | Input Voltage | 12.0±1.8V |
LQ150X1LG93 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.2(W)×231.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 950g (Max.). As a TN, Normally White, Transmissive LCM product, LQ150X1LG93 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. LQ150X1LG93 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
Product Tags:
|
|

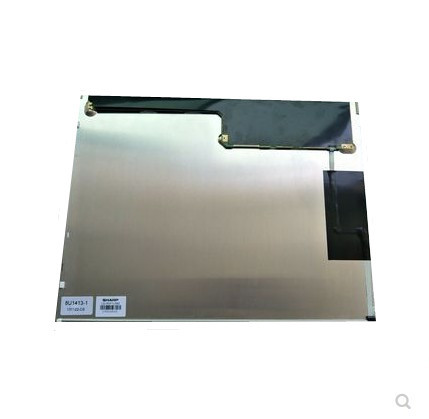

LQ150X1LG93 Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY Images
|
