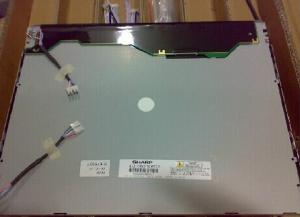

LQ150X1LW72 Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LQ150X1LW72 Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Sharp

Model Number : LQ150X1LW72

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-2DAYS

Packaging Details : 5 pcs / box 8.5 Kgs 319×402×280 mm (L×W×H)

Panel Size : 15"

Panel Model : LQ150X1LW72

Resolution : 1024(RGB)×768, XGA, 85PPI

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Brightness : 350 cd/m² (Typ.)

Lamp Type : 4 pcs CCFL , 50K hours , Without Driver

Signal Interface : LVDS (1 ch, 8-bit) , 20 pins Connector

Environment : Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 60 °C

Contact Now

LQ150 Series LQ150X1LW73 LQ150X1LW72 LQ150X1LW71U LQ150X1LW71N

Sharp LQ150X1LW72 Mechanical Details

Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
0.099×0.297 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.297×0.297 (H×V) [85PPI]
Mechanical Size :
Active Area(mm)
304.128(H) × 228.096(V)
Bezel Area(mm)
307.2(H) × 231.1(V)
Outline Dim.(mm)
331.6(H) × 254.76(V)
Depth(mm)
12.5±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel
Other Spec :
Weight
1.35Kgs (Max.)
Treatment
Antiglare (Haze 42%), Hard coating (2H), Antireflection

Sharp LQ150X1LW72 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
ASV, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.2M (6-bit + FRC)
Color Temperature
6485K
White Uniformity
1.25 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
69%
sRGB
90% coverage
Adobe RGB
72% coverage
DCI-P3
72% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ150X1LW72 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
630/850mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF14H-20P-1.25H
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-020C

Sharp LQ150X1LW72 Backlight Details

Backlight Features :
Type
CCFL
Quantity
4 pcs
Position
Edge light type (Top and Bottom)
Replacement
Replaceable (LQ0DDB5387)
Shape
Straight
Life Time
50K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
615/700V (Typ./Max.)
Current Supply
3.5/6.5/7.5mA (Min./Typ./Max.)
Frequency
40/60/70KHz (Min./Typ./Max.)
Startup Voltage
1080/1480V (Max.)(Ta=+25/0℃)
Consumption
16.0/18.2W (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
BHSR-02VS-1
3.5 mm
2 pins
4 pcs
BLL-2PINS-HL
Backlight Driver :
No

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
