DJ101IA-07A Innolux 10.1" 1280(RGB)×720 750 cd/m² INDUSTRIAL LCD DISPLAY

Name: DJ101IA07A Innolux 101quot 1280RGB720 750 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Wholesale DJ101IA-07A Innolux 10.1" 1280(RGB)×720 750 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : INNOLUX

Model Number : DJ101IA-07A

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : DJ101IA-07A

BRAND : INNOLUX

SIZE : 10.1"

RESOLUTION : 1280(RGB)×720

BRIGHTNESS : 750 cd/m²

Interface Type : LVDS (1 ch, 6/8-bit) , 40 pins Connector

Type : a-Si TFT-LCD , LCM

Environment : Operating Temperature: -30 ~ 85 °C

Contact Now

nolux DJ101IA-07A Application Details

Basic Detail :	Manufacturer		Model Name	DJ101IA-07A
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	10.1 inch	Designed For
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-40 ~ 90 °C
Maximum Ratings :	Vibration Level	1.5G (14.7 m/s²)	RoHS

Innolux DJ101IA-07A Optical Details

Basic Information :	Luminance	750 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	10/15 (Typ.)(Tr/Td) (ms)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	AAS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Support Color	262K/16.7M (6-bit / 8-bit)
Color Performance :	Color Temperature	6638K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity

Innolux DJ101IA-07A Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)×720 [WXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.05825×0.17475 mm	Pixel Pitch(W×H)	0.17475×0.17475 mm [145PPI]
Physical Size :	Active Viewing	223.68(W)×125.82(H) mm	Overall Dim.	238.6(W)×148(H) mm
Physical Size :	Bezel Opening	226.68(W)×128.82(H) mm	Overall Depth	6.5/9.7 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style
Other Detail :	Mass	330g (Max.)	Surface	Antiglare

Innolux DJ101IA-07A Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

Innolux DJ101IA-07A Interface Details

Signal Electrical :	Input Current	-		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	1.6W (Max.)	Signal Interface	LVDS (1 ch, 6/8-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	I-PEX	20647-040E-01	1 pcs	0.5 mm	40 pins

Innolux DJ101IA-07A Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	20K(Min.) (Hours)
Lamp Electrical :	Input Current	288mA (Typ.)		Input Voltage	22.6/27.2V (Min./Max.)
Lamp Electrical :	Consumption	7.84W (Max.)
Interface Features :	Position	-	Physical Type	Included in panel signal interface
Backlight Driver :	No

Innolux DJ101IA-07A Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	26 pcs / box	620×345×240 mm	10.4 Kgs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

DJ101IA-07A Innolux 10.1" 1280(RGB)×720 750 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

WVGA Industrial TFT Display

NTSC Lcd Video Panel

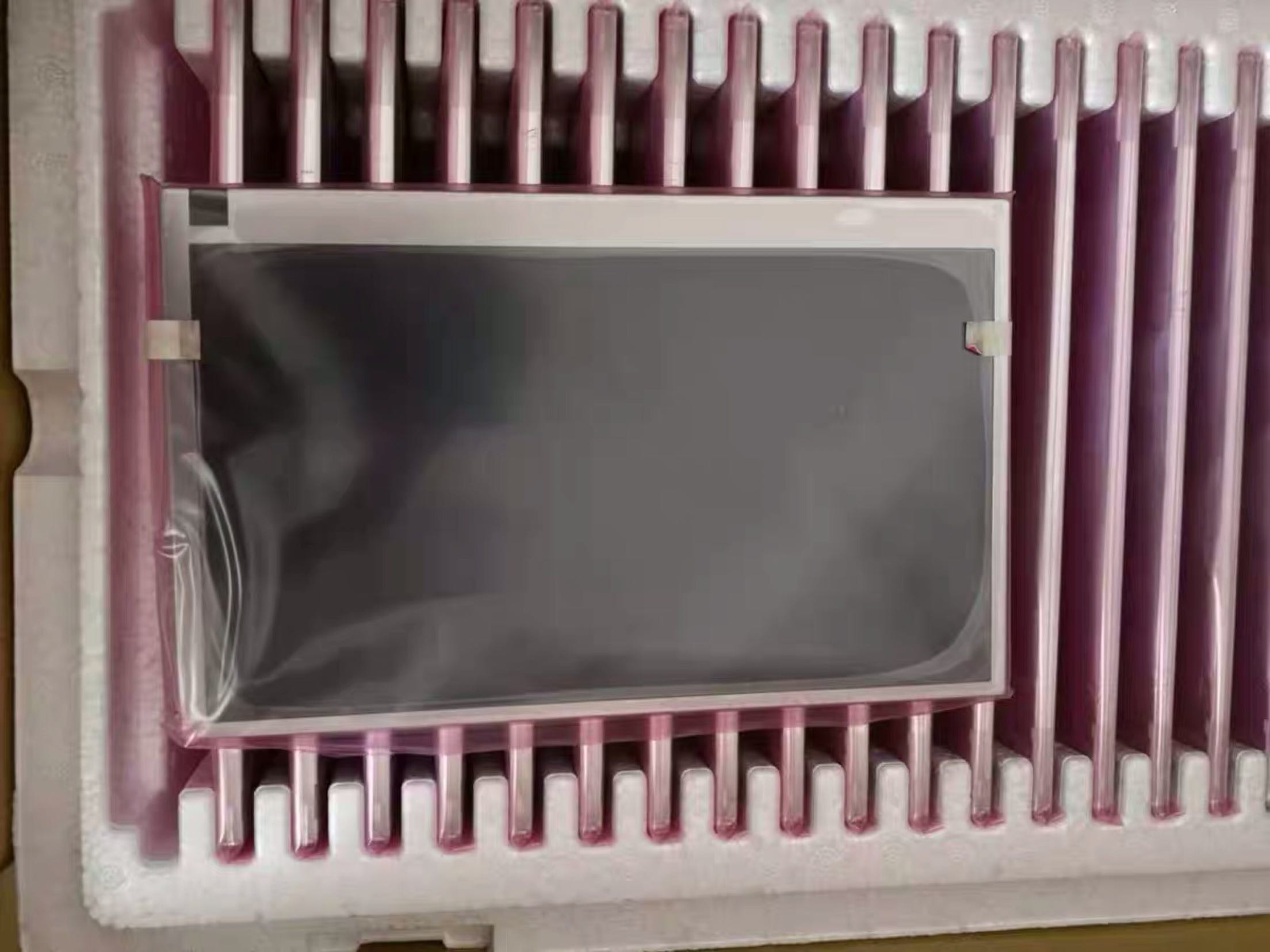

DJ101IA-07A Innolux 10.1" 1280(RGB)×720 750 cd/m² INDUSTRIAL LCD DISPLAY Images
