KCG057QV1DB-G56 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

Brand Name : Kyocera

Model Number : KCG057QV1DB-G56

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : KCG057QV1DB-G56

BRAND : Kyocera

RESOLUTION : 320×240RGB

SIZE : 5.7INCH

Screen Type : LCM , CSTN-LCD

Signal Type : Parallel Data (8-bit) , 20 pins Connector

Backlight : 1 pcs CCFL , Optional

Color Depth : Color

Contact Now

Kyocera KCG057QV1DB-G56 Application Features

Basic Information : Brand Name Model Name Type Model Alias
KCG057QV1DB-G56 CSTN-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
-

Kyocera KCG057QV1DB-G56 Mechanical Features

Screen Size : 5.7"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320(RGB)×240, QVGA RGB Vertical Stripe 0.120×0.360 mm 0.360×0.360 mm [70PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
115.2×86.4 mm 119.4×90.6 mm 144×104.8 mm 9.0/13.2 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Holes & Brackets : Rear mounting poles (4-Φ2.6)

Kyocera KCG057QV1DB-G56 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
- STN, Normally Black, Transmissive 60:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
- 50/50/20/35 (Typ.)(CR≥2) 180/170 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
7732K Color X:0.300; Y:0.300

Kyocera KCG057QV1DB-G56 Electronics Features

Refresh Rate : 75Hz
Reverse Scan : No

Kyocera KCG057QV1DB-G56 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
CCFL Edge light type - 1 pcs U shape -
Interface Features : CCFL Driver State Physical Type Interface Position
Optional Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-HNL

Kyocera KCG057QV1DB-G56 Interface Features

Interface Features : Signal Type Physical Type Interface Position
Parallel Data (8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
Kyocera Elco 08-6210-020-340-800 1 pcs 20 pins 0.5 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KCG057QV1DB-G56 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAYKCG057QV1DB-G56 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY


Product Tags:

CCFL CSTN LCD Panel



VGA Lcd Video Panel


Wholesale KCG057QV1DB-G56 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY from china suppliers

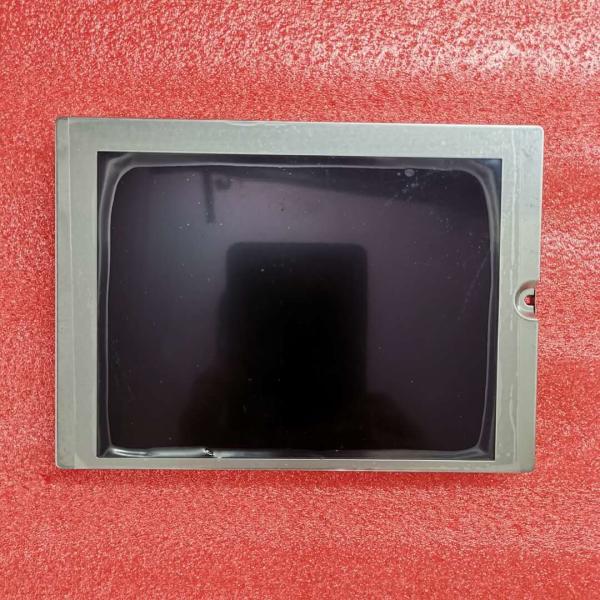

KCG057QV1DB-G56 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY Images
